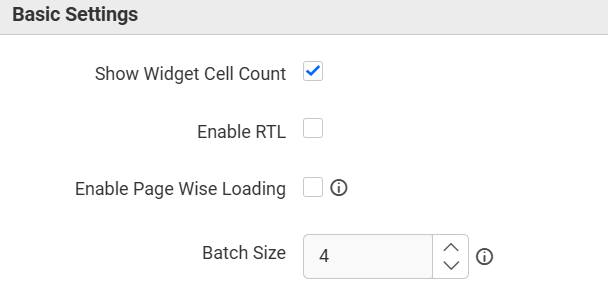

Basic Settings

Basic Settings

Show Widget Cell Count

This option allows you to display or hide the tooltip that shows the number of cells occupied by a widget in the design layout. The count represents the widgets size in terms of rows and columns (for example, 6 x 6 Cells).

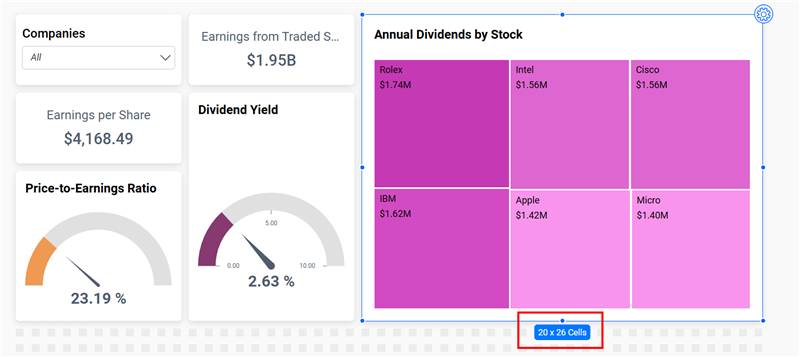

Below is an example of how the cell count tooltip appears in the Annual Dividends By Stock widget:

Treemap Widget Cell Count

Enable Page Wise Loading

The Enable Page Wise Loading option renders dashboard widgets sequentially, page by page. Each page loads only after the previous page has finished rendering.

By default, a designer page contains 24 rows. When the row count exceeds this limit, the designer automatically splits the layout into multiple pages.

Example:

By default, the designer page contains 24 rows. If you add 20 more rows, the layout is split into two pages:

  1. Page 1: Contains all widgets placed within the first 24 rows.
  2. Page 2: Contains all widgets placed within the additional 20 rows.

When the dashboard loads, it first waits for all widgets on Page 1 to finish rendering. Once completed, it proceeds to load the widgets on Page 2.

Batch Size

The Batch Size option specifies the number of widgets bundled into a single API request.

Load widgets are not clubbed together. Any widget with row‑series configurations or multiple data fetch operations is treated as a load widget.

The following widgets are classified as load widgets. They are excluded from clubbed API requests and are processed individually through separate API calls.

  1. Grid Widget
  2. Pivot Grid
  3. Chart widgets with row‑series configurations
  4. KPI and Number Card widgets with series configurations
  5. Bubble Scatter charts with row‑series configurations
