Bold BI Dashboards embedding in Vue.js with Node.js using Embedded SDK

A GitHub link has been provided to get the sample application, which showcases the rendering of the dashboard that is accessible on your Bold BI server. Following this, there are instructions on how to create a new embedding application in Vue.js with Node.js on your own.

NOTE: The best way to get started is by reading the Getting Started section of the documentation. The Getting Started guide provides enough information to know before working on the sample.

Requirements/Prerequisites

NOTE: Node.js versions 12.13 to 18.18 are supported.

How to run the sample

Please obtain the sample for Vue.js with Node.js from GitHub.
Please ensure that you have enabled embed authentication on the embed settings page. If it is not enabled, please follow the provided instructions or refer to the image below for guidance on how to enable it.
Please use this link as a reference to download the embedConfig.json file. Additionally, you can refer to the following image for visual guidance.

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please ensure that you have placed it in the application as shown in the following image.

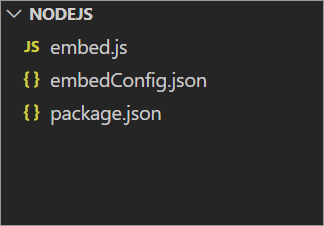

EmbedConfig Location Image

ServerUrl	Dashboard Server BI URL (ex: http://localhost:5000/bi, http://demo.boldbi.com/bi)
SiteIdentifier	For Bold BI Enterprise edition, it should be like `site/site1`. For Bold BI Cloud, it should be empty string.
Environment	Your Bold BI application environment. (If it is cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your own server, use `BoldBI.Environment.Enterprise`).
DashboardId	Item id of the dashboard to be embedded in your application.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboard
ExpirationTime	Token expiration time. (In the EmbedConfig.json file, the default token expiration time is 10000 seconds)

Open your Nodejs sample in Visual Studio Code.
To install all dependencies, use the command npm install.
Please run the back-end Nodejs sample by using the command node embed.js.
Open the vue sample in a new window of Visual Studio Code.
To install all dependent packages, use the following command: npm install.
Please run your vue sample using the following command: npm run serve.

How this sample works

The dashboard will be rendered using data fetched from the embedconfig.json file through the /getdetails endpoint in the back-end Node.js.

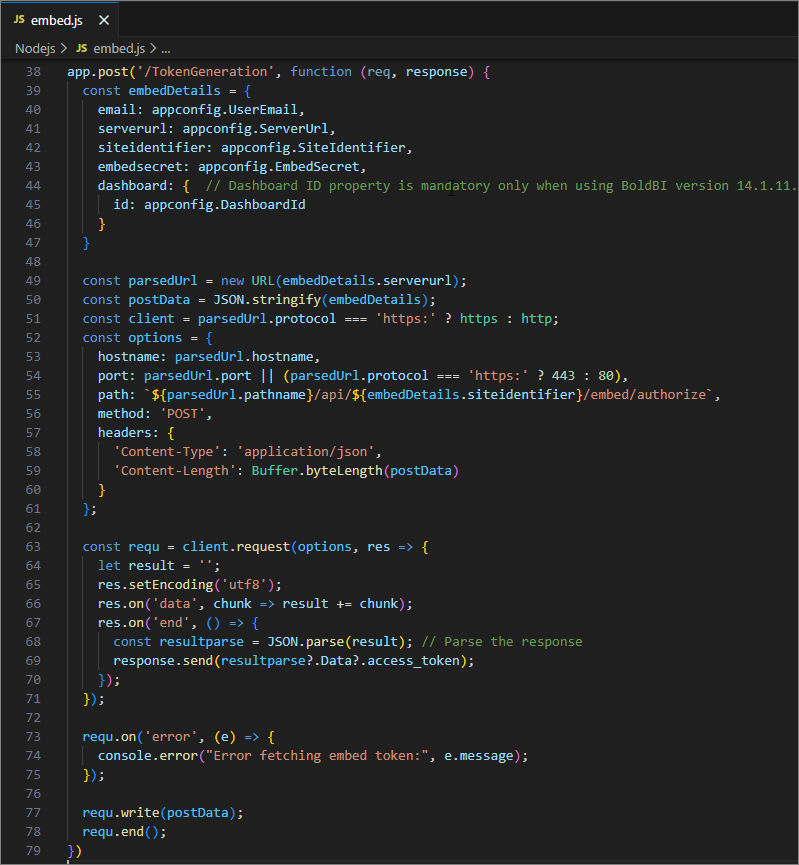

To generate an access token, call the TokenGeneration API with the provided embedConfig values.

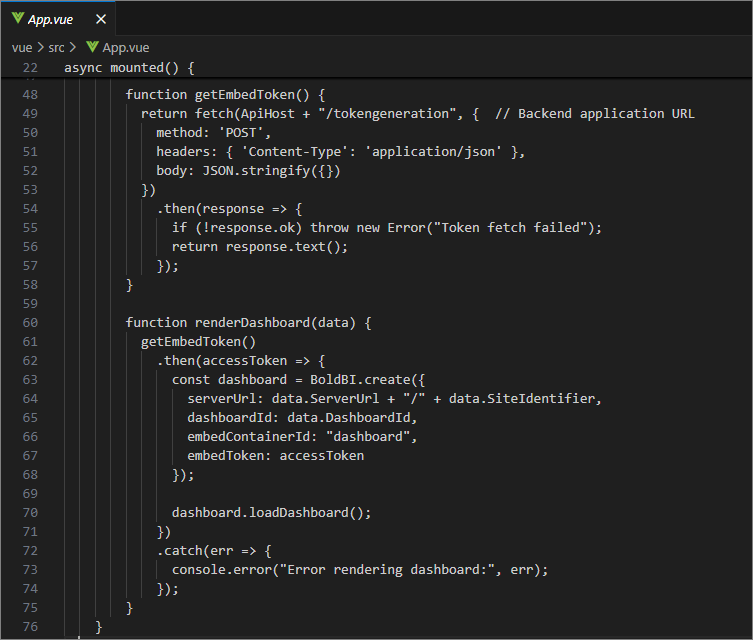

Once the token is generated, it will be returned to the App.vue file and the dashboard will start to render it.

Steps to create new Vue.js with Node.js application to embed dashboard

Create a folder in the desired location and open it in Visual Studio Code.

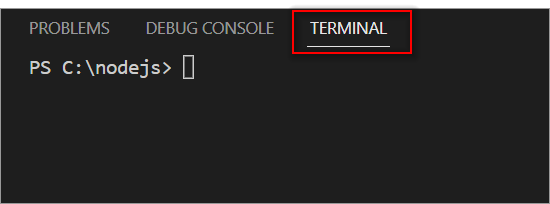

Open the terminal in Visual Studio Code. Please refer to the image below.
Please ensure that you have enabled embed authentication on the embed settings page. If it is not enabled, please follow the provided instructions or refer to the image below to enable it.
Please use this link as a reference for downloading the embedConfig.json file. Additionally, you can refer to the following image for visual guidance.
Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please ensure that you have placed it in the application as shown in the following image.

Create a JavaScript file named embed.js and create an API called /authorizationserver/get that uses the GetSignatureUrl() method to generate the algorithm. Within this API, append the embedQueryString, userEmail, and the value obtained from the GetSignatureUrl() method as query parameters in the URL to retrieve details of a specific dashboard.

    var fs = require("fs");
    var http = require("http");
    var https = require("https");
    var url = require("url");
    var express = require('express');
    var cors = require('cors');
    var app = express();
    var crypto = require('crypto');
    const path = require('path');

    app.use(cors());
    //Parse JSON bodies (as sent by API clients).
    app.use(express.json());

    //Assign a port number for an API to run.
    const port = 8080;

    let appconfig;
    try {
    appconfig = JSON.parse(fs.readFileSync('embedConfig.json'));
    } catch (error) {
    console.error('Error: embedConfig.json file not found.');
    process.exit(1);
    }

    var embedSecret = appconfig.EmbedSecret;
    var userEmail = appconfig.UserEmail;

    app.post('/authorizationserver',  async function (req, response){
    var embedQuerString = req.body.embedQuerString;
    var dashboardServerApiUrl = req.body.dashboardServerApiUrl;

    embedQuerString += "&embed_user_email=" + userEmail;
    embedQuerString += "&embed_server_timestamp=" + Math.round((new Date()).getTime() / 1000);
    var embedSignature = "&embed_signature=" + GetSignatureUrl(embedQuerString);
    var embedDetailsUrl = "/embed/authorize?" + embedQuerString+embedSignature;

    var serverProtocol = url.parse(dashboardServerApiUrl).protocol == 'https:' ? https : http;
    serverProtocol.get(dashboardServerApiUrl+embedDetailsUrl, function(res){
        var str = '';
        res.on('data', function (chunk) {
        str += chunk;
        });
        res.on('end', function () {
        response.send(str);
        });
    });
    })

    function GetSignatureUrl(queryString)
    {
    var keyBytes = Buffer.from(embedSecret);
    var hmac = crypto.createHmac('sha256', keyBytes);
    data = hmac.update(queryString);
    gen_hmac= data.digest().toString('base64');

    return gen_hmac;
    }
    app.get('/getdetails', (req, res) => {
    const embedConfigPath = path.join(__dirname, 'embedConfig.json');
    const jsonData = fs.readFileSync(embedConfigPath, 'utf8');
    res.send(jsonData);
    });

    app.listen(port, () => {
    console.log(`Server is running on port ${port}`);
    });

NOTE: You can change the port number in embed.js according to your preferences. However, if you change the port number of the API host, you must also update the port number in the App.vue file.

Please create a new file and name it package.json. It is essential to install the packages listed in the following dependencies section.

{

    "version": "1.0.0",
    "description": "",
    "main": "embed.js",
    "dependencies": {
        "cors": "^2.8.5",
        "express": "^4.17.3"
    },
    "devDependencies": {},
    "scripts": {
        "test": "echo \"Error: no test specified\" && exit 1"
    },
    "keywords": [],
    "author": "",
    "license": "ISC"
}

Create another folder in the desired location and open it in Visual Studio Code.
To create a new Vue.js project, we need to run this command in the terminal and select the second option.
```
     vue create vue
```

Open the App.vue file and replace the code below.

   <template>
       <div id="app" ref="app">
           <div id="dashboard" ref="dashboard">
           <div id="errorModal" class="modal" v-show="showErrorModal">
               <p class="error-message">{{ errorMessage }} Please use this <a href="/site-administration/embed-settings/" target="_blank">link</a> to obtain the Json file from the Bold BI server.</p>
           </div>
           </div>
       </div>
       </template>

       <script>
       import $ from 'jquery';
       import { BoldBI } from '@boldbi/boldbi-embedded-sdk';
       window.jQuery = $
       export default {
       name: 'App',
       data() {
           return {
           errorMessage: '',
           };
       },
       async mounted() {
               var scripts = [
                   'https://cdn.jsdelivr.net/npm/vue@2.5.16/dist/vue.js',
               ];
               scripts.forEach((script) => {
                   let tag = document.createElement('script');
                   tag.setAttribute('src', script);
                   tag.setAttribute('type', 'text/javascript');
                   tag.setAttribute('defer', 'defer');
                   tag.async = true;
                   document.head.appendChild(tag);
               });


               //NodeJs application would be run on http://localhost:8080, which needs to be set as `apiHost`.
               let ApiHost = 'http://localhost:8080';

               try {
                   const response = await fetch(ApiHost+'/getdetails');
                   const data = await response.json();
                   renderDashboard(data);
               }catch (error) {
                   this.errorMessage = 'To compile and run the project, an embed config file needs to be required.';
                   this.showErrorModal = true;
               }

               function renderDashboard(data) {
               let dashboard = BoldBI.create({
                   serverUrl: data.ServerUrl + '/' + data.SiteIdentifier,
                   dashboardId: data.DashboardId,
                   embedContainerId: 'dashboard',
                   embedType: BoldBI.EmbedType.Component,
                   environment: data.Environment,
                   width: '100%',
                   height: window.innerHeight + 'px',
                   expirationTime: 100000,
                   authorizationServer: {
                   url: ApiHost + "/authorizationserver",
                   },
               });
               dashboard.loadDashboard();
               }
           },
       };
       </script>
       <style>
       .error-message {
       color: red;
       text-align: center;
       font-size: 20px;
       margin-top: 300px
       }
       </style>

NOTE: Please make sure to update the port number in the apiHost variable in the App.vue file if you have made any changes to the port number of the API host in embed.js.

Open the package.json file and replace the code within it.

   {
       "name": "vue",
       "version": "0.1.0",
       "private": true,
       "scripts": {
           "serve": "vue-cli-service serve",
           "build": "vue-cli-service build",
           "lint": "vue-cli-service lint"
       },
       "dependencies": {
           "@boldbi/boldbi-embedded-sdk": "6.16.12",
           "core-js": "^3.8.3",
           "jquery": "^3.5.1",
           "vue": "^2.6.14"
       },
       "devDependencies": {
           "@babel/core": "^7.12.16",
           "@babel/eslint-parser": "^7.12.16",
           "@vue/cli-plugin-babel": "~5.0.0",
           "@vue/cli-plugin-eslint": "~5.0.0",
           "@vue/cli-service": "~5.0.0",
           "eslint": "^7.32.0",
           "eslint-plugin-vue": "^8.0.3",
           "vue-template-compiler": "^2.6.14"
       },
       "eslintConfig": {
           "root": true,
           "env": {
           "node": true
           },
           "extends": [
           "plugin:vue/essential",
           "eslint:recommended"
           ],
           "parserOptions": {
           "parser": "@babel/eslint-parser"
           },
           "rules": {}
       },
       "browserslist": [
           "> 1%",
           "last 2 versions",
           "not dead"
       ]
   }

Open Node.js and execute the command npm install to install the necessary dependencies. Then, run the sample using the command node embed.js.
Open vue and execute the command npm install to install the necessary dependencies. Then, run the sample by using the npm run serve command to render the dashboard.
Once you execute the command above, the sample will be hosted at http://localhost:8081/.
