Bold BI Dashboards embedding in Vue.js with ASP.NET core using Embedded SDK

A GitHub link has been provided to get the sample application, which demonstrates the rendering of the dashboard available on your Bold BI server. This is followed by steps to create a new embedding application in Vue.js with ASP.NET Core on your own.

NOTE: The recommended starting point is to read the Getting Started section of the documentation. The Getting Started guide provides all the necessary information you need to know before working on the sample.

Requirements/Prerequisites

NOTE: Node.js versions 18.17 to 20.15 are supported.

How to run the sample

Please retrieve the Vue.js with ASP.NET core sample from GitHub.
Please ensure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link for reference. Furthermore, you can refer to the accompanying image for visual guidance.

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please make sure that you have placed it in the application exactly as shown in the image below.

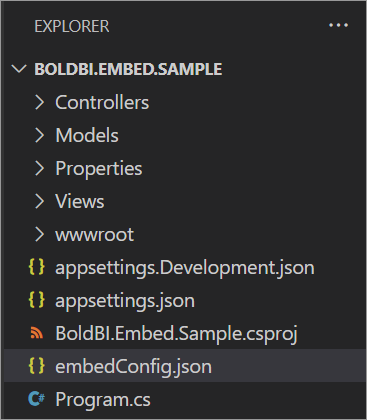

EmbedConfig Location Image

ServerUrl	Dashboard Server BI URL (ex: http://localhost:5000/bi, http://demo.boldbi.com/bi)
SiteIdentifier	For Bold BI Enterprise edition, it should be like `site/site1`. For Bold BI Cloud, it should be empty string.
Environment	Your Bold BI application environment. (If it is cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your own server, use `BoldBI.Environment.Enterprise`).
DashboardId	Item id of the dashboard to be embedded in your application.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboard
ExpirationTime	Token expiration time. (In the EmbedConfig.json file, the default token expiration time is 10000 seconds).

Please open your ASP.NET Core sample in Visual Studio Code.
To run the back-end ASP.NET Core sample, use the following command: dotnet run.
Please open the Vue sample in a new window of Visual Studio Code.
To install all dependent packages, use the following command: npm install.
To run your Vue sample, use the following command: npm run serve.

How this sample works

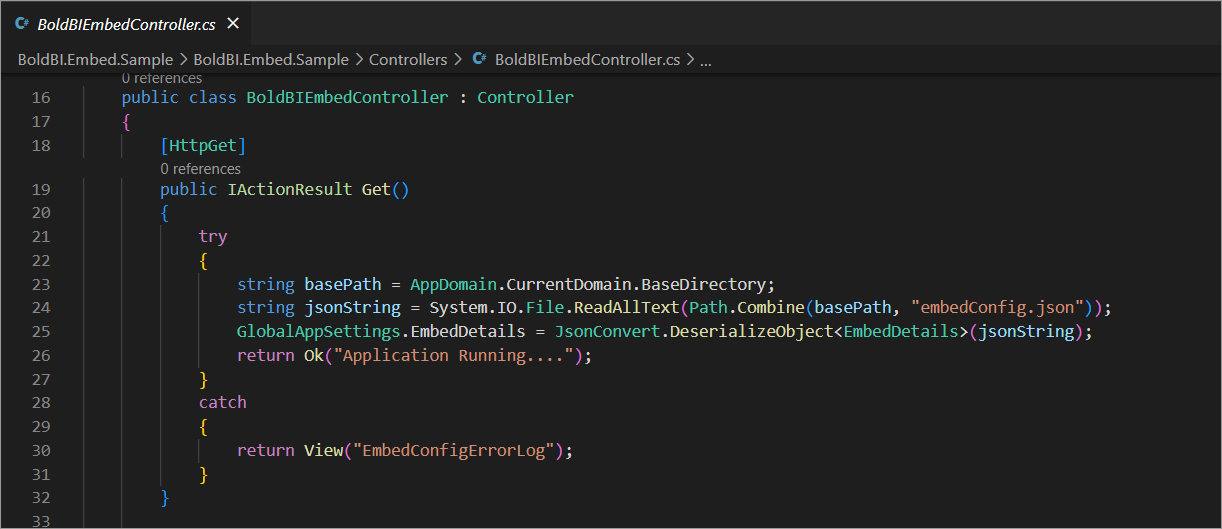

The application checks if embedConfig.json is available; if it is, it deserializes and stores the content in EmbedDetails. Otherwise, it throws an error.

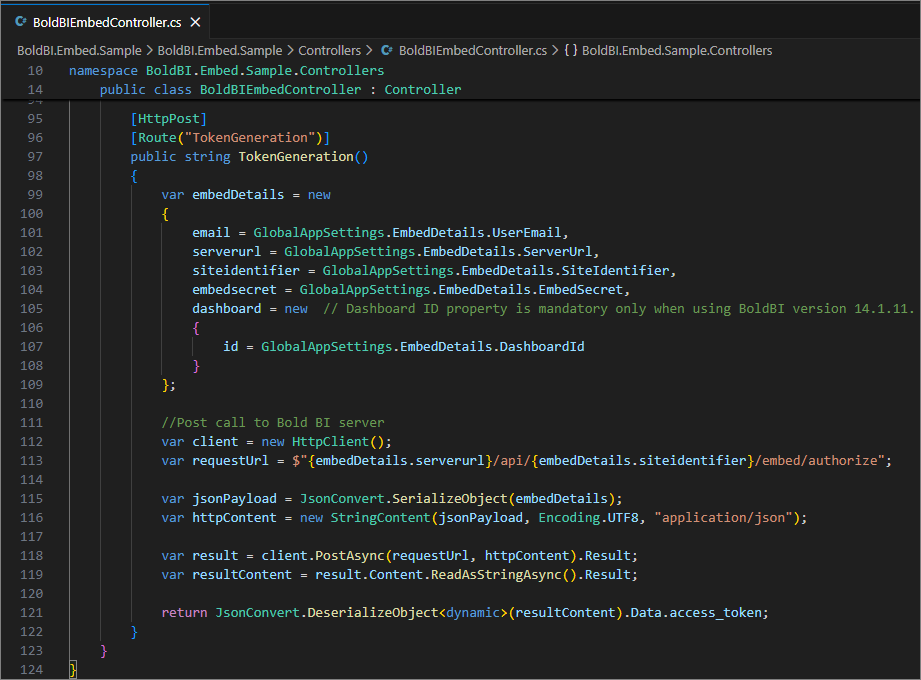

To generate an access token, call the TokenGeneration API with the provided embedConfig values.
Once the token is generated, it will be returned to the App.vue file and the dashboard will start to render it.

Steps to create new Vue.js with ASP.NET Core application to embed dashboard

Please create a folder in the desired location and open it in Visual Studio Code.

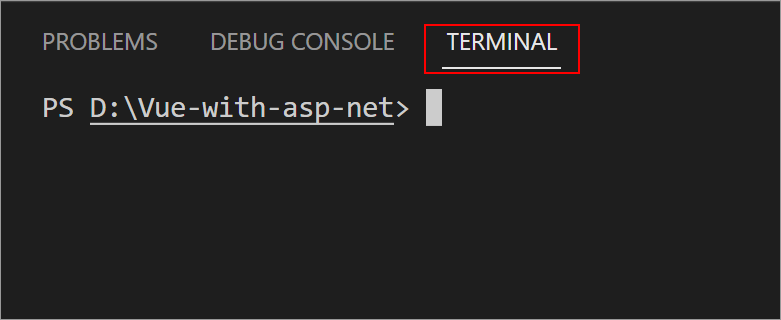

Open the terminal in Visual Studio Code. Please refer to the image below.
To create a new project, we need to run this command in the terminal and then navigate to the directory.
```
    dotnet new webapi -n asp-net
```
Please ensure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link for reference. Additionally, you can refer to the image below for visual guidance.
Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please make sure that you have placed it in the application exactly as shown in the following image.

Create a new folder named Models. Create a model class named DataClass.cs to define the following properties. These properties are used for retrieving the dashboard list from the server.

To add the necessary references to the project, execute the following commands in the terminal: dotnet add package Newtonsoft.Json and dotnet add package System.Runtime.Serialization.Primitives. Make sure to include the System.Runtime.Serialization and Newtonsoft.Json namespaces in the DataClass.cs model file.

[DataContract]
public class EmbedClass
{
    [DataMember]
    public string embedQuerString { get; set; }
    [DataMember]
    public string dashboardServerApiUrl { get; set; }
}

public class TokenObject
{
    public string Message { get; set; }

    public string Status { get; set; }

    public string Token { get; set; }
}

public class Token
{
    [JsonProperty("access_token")]
    public string AccessToken { get; set; }

    [JsonProperty("token_type")]
    public string TokenType { get; set; }

    [JsonProperty("expires_in")]
    public string ExpiresIn { get; set; }

    [JsonProperty("email")]
    public string Email { get; set; }

    public string LoginResult { get; set; }

    public string LoginStatusInfo { get; set; }

    [JsonProperty(".issued")]
    public string Issued { get; set; }

    [JsonProperty(".expires")]
    public string Expires { get; set; }
}
public class EmbedDetails
{
    public string Environment { get; set; }

    public string SiteIdentifier { get; set; }

    public string ServerUrl { get; set; }

    public string EmbedSecret { get; set; }

    public string UserEmail { get; set; }

    public string EmbedType { get; set; }

    public string DashboardId { get; set; }
}

Create another model class called GlobalAppSettings.cs to define the following properties. These properties will maintain the embedConfig.json file object within the GlobalAppSettings.
```
public class GlobalAppSettings
{
    public static EmbedDetails EmbedDetails { get; set; }
}
```

Please create a class called BoldBIEmbedController.cs in the Controllers folder. To retrieve specific dashboard details, define an API called AuthorizationServer() that utilizes the GetSignatureUrl() method to generate the algorithm. In this API, append the embedQueryString, userEmail, and the value from the GetSignatureUrl() method as query parameters in the URL to the authorization server of the particular dashboard. Make sure to include the following namespaces: Newtonsoft.Json, System.Security.Cryptography, System.Net.Http, and Microsoft.AspNetCore.Mvc.

[ApiController]
[Route("api/[controller]")]
public class BoldBIEmbedController : Controller
{
    [HttpGet]
    public IActionResult Get()
    {
           string basePath = AppDomain.CurrentDomain.BaseDirectory;
            string jsonString = System.IO.File.ReadAllText(Path.Combine(basePath, "embedConfig.json"));
            GlobalAppSettings.EmbedDetails = JsonConvert.DeserializeObject<EmbedDetails>(jsonString);
            return Ok("Application Running....");
    }

    [HttpGet]
    [Route("GetServerDetails")]
    public IActionResult GetServerDetails()
    {
        var jsonData = System.IO.File.ReadAllText("embedConfig.json");
        string basePath = AppDomain.CurrentDomain.BaseDirectory;
        string jsonString = System.IO.File.ReadAllText(Path.Combine(basePath, "embedConfig.json"));
        GlobalAppSettings.EmbedDetails = JsonConvert.DeserializeObject<EmbedDetails>(jsonString);
        return Ok(jsonData);
    }

    [HttpPost]
    [Route("AuthorizationServer")]
    public string AuthorizationServer([FromBody] object embedQuerString)
    {
        var embedClass = Newtonsoft.Json.JsonConvert.DeserializeObject<EmbedClass>(embedQuerString.ToString());

        var embedQuery = embedClass.embedQuerString;
        // User your user-email as embed_user_email
        embedQuery += "&embed_user_email=" + GlobalAppSettings.EmbedDetails.UserEmail;
        //To set embed_server_timestamp to overcome the EmbedCodeValidation failing while different timezone using at client application.
        double timeStamp = (int)DateTime.UtcNow.Subtract(new DateTime(1970, 1, 1)).TotalSeconds;
        embedQuery += "&embed_server_timestamp=" + timeStamp;
        var embedDetailsUrl = "/embed/authorize?" + embedQuery + "&embed_signature=" + GetSignatureUrl(embedQuery);

        using (var client = new HttpClient())
        {
            client.BaseAddress = new Uri(embedClass.dashboardServerApiUrl);
            client.DefaultRequestHeaders.Accept.Clear();

            var result = client.GetAsync(embedClass.dashboardServerApiUrl + embedDetailsUrl).Result;
            string resultContent = result.Content.ReadAsStringAsync().Result;
            return resultContent;
        }

    }

    public string GetSignatureUrl(string queryString)
    {
        if (queryString != null)
        {
            var encoding = new System.Text.UTF8Encoding();
            var keyBytes = encoding.GetBytes(GlobalAppSettings.EmbedDetails.EmbedSecret);
            var messageBytes = encoding.GetBytes(queryString);
            using (var hmacsha1 = new HMACSHA256(keyBytes))
            {
                var hashMessage = hmacsha1.ComputeHash(messageBytes);
                return Convert.ToBase64String(hashMessage);
            }
        }
        return string.Empty;
    }
}

Open the Program.cs file and insert the following code snippet before app.UseHttpsRedirection().

app.UseCors(corsPolicyBuilder => corsPolicyBuilder
  .AllowAnyOrigin()
  .AllowAnyMethod()
  .AllowAnyHeader()
);

app.MapControllerRoute(
  name: "default",
  pattern: "{controller=BoldBIEmbed}/{action=Get}/{id?}");

To create another folder in the desired location and open it in Visual Studio Code.

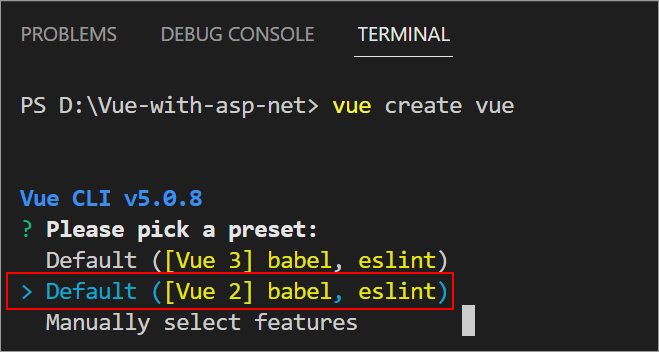

To create a new Vue.js project, we need to execute this command in the terminal and choose the second option.
```
     vue create vue
```

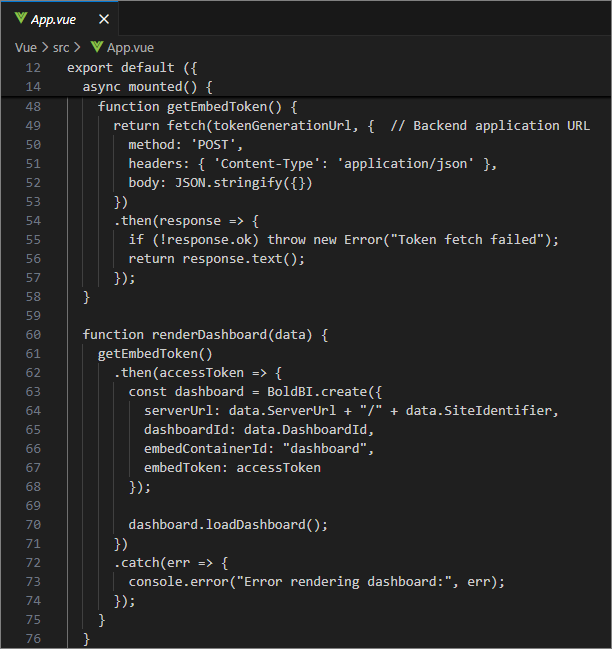

Please open the App.vue file and replace the existing code with the following.

<template>
  <div id="app" ref="app">
    <div id="dashboard" ref="dashboard"></div>
  </div>
</template>

<script>
import Vue from 'vue'
import $ from 'jquery'
import {BoldBI} from '@boldbi/boldbi-embedded-sdk';
window.jQuery = $

export default Vue.extend ({
  name: 'App',
  async mounted() {
    var scripts = [
      "https://cdn.jsdelivr.net/npm/vue@2.5.16/dist/vue.js",
    ];
    scripts.forEach(script => {
      let tag = document.createElement("script");
      tag.setAttribute("src", script);
      tag.setAttribute("type", "text/javascript");
      tag.setAttribute("defer", "defer");
      tag.async = true;
      document.head.appendChild(tag);
    });

    //ASP.NET Core application would be run on http://localhost:5297, which needs to be set as `apiHost`.
    let apiHost = "<your application url>";
    //Url of the GetDetails action in the ValuesController of the ASP.NET Core application.
    let authorizationUrl = "/api/boldbiembed/authorizationserver";
    //Url of the GetDashboards action in the ValuesController of the ASP.NET Core application.
    let getserverdetails = "/api/boldbiembed/getserverdetails"

      const response = await fetch(apiHost + getserverdetails);
      const data = await response.json();
      renderDashboard(data);

    function renderDashboard(data) {
      let dashboard = BoldBI.create({
        serverUrl: data.ServerUrl + '/' + data.SiteIdentifier,
        dashboardId: data.DashboardId,
        embedContainerId: 'dashboard',
        embedType: data.EmbedType,
        environment: data.Environment,
        width: '100%',
        height: window.innerHeight -18 + 'px',
        expirationTime: 100000,
        authorizationServer: {
          url: apiHost + authorizationUrl ,
        },
      });
      dashboard.loadDashboard();
    }
  }
});
</script>

NOTE: Open the launchSettings.json file, copy the applicationUrl, and paste it in the apiHost.

Please open the package.json file and replace the code within it.

{
   "name": "embeddedbi",
   "version": "0.1.0",
   "private": true,
   "scripts": {
     "serve": "vue-cli-service serve",
     "build": "vue-cli-service build",
     "lint": "vue-cli-service lint"
   },
   "dependencies": {
     "@boldbi/boldbi-embedded-sdk": "6.10.12",
     "axios": "1.4.0",
     "core-js": "^3.6.5",
     "jquery": "^3.5.1",
     "vue": "^2.6.11"
   },
   "devDependencies": {
     "@babel/core": "^7.12.16",
     "@babel/eslint-parser": "^7.12.16",
     "@vue/cli-plugin-babel": "~5.0.0",
     "@vue/cli-plugin-eslint": "~5.0.0",
     "@vue/cli-service": "~5.0.0",
     "eslint": "^7.32.0",
     "eslint-plugin-vue": "^8.0.3",
     "vue-template-compiler": "^2.6.14"
   },
   "eslintConfig": {
     "root": true,
     "env": {
       "node": true
     },
     "extends": [
       "plugin:vue/essential",
       "eslint:recommended"
     ],
     "parserOptions": {
       "parser": "@babel/eslint-parser"
     },
     "rules": {}
   },
   "browserslist": [
     "> 1%",
     "last 2 versions",
     "not dead"
   ]
}

Then, run the ASP.NET Core application using the dotnet run command.
Open the vue and use this command to install dependencies npm install and run the sample by using the npm run serve command to render the dashboard.
