Bold BI Dashboards embedding in React with Node.js using Embedded SDK

A GitHub link has been provided to get the sample application, which demonstrates the dashboard rendering in your Bold BI server and followed by steps to create a new embedding application in React with Node.js on your own.

NOTE: The best way to get started would be to read the Getting Started section of the documentation first. The Getting Started guide provides enough information that you need to know before working on the sample.

Prerequisites

NOTE: Node.js versions 14.16 to 18.18 are supported.

How to run the sample

Please get the React with Node.js sample from GitHub.
Please make sure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the provided image or detailed instructions for enabling it.
To download the embedConfig.json file, please click on this link for reference. Additionally, you can refer to the following image for visual guidance.

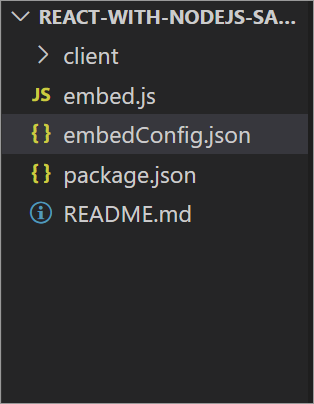

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Make sure to place it in the application exactly as shown in the following image.

EmbedConfig Location Image

ServerUrl	Dashboard Server BI URL (ex: http://localhost:5000/bi, http://demo.boldbi.com/bi)
SiteIdentifier	For Bold BI Enterprise edition, it should be like `site/site1`. For Bold BI Cloud, it should be empty string.
Environment	Your Bold BI application environment. (If it is cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your own server, use `BoldBI.Environment.Enterprise`).
DashboardId	Item id of the dashboard to be embedded in your application.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboard
ExpirationTime	Token expiration time. (In the EmbedConfig.json file, the default token expiration time is 10000 seconds).

To install all the necessary packages, use the following command.
```
     npm install
```
To run the samples, please use the following command.
```
     npm start
```

NOTE: If you are using a React version lower than v18.0, you can update the index.js file by adding the following line. Make sure to replace the existing createRoot line with the following line.

 import ReactDOM from 'react-dom';
 ReactDOM.render(<App />, document.getElementById('root'));

How this sample works

To generate an access token, call the TokenGeneration API with the provided embedConfig values.
Once the token is generated, it will be returned to the Dashboard.js file and the dashboard will start to render it.

Steps to create new React with Node.js application to embed dashboard

Create a folder in the desired location and open it in the Visual Studio Code.

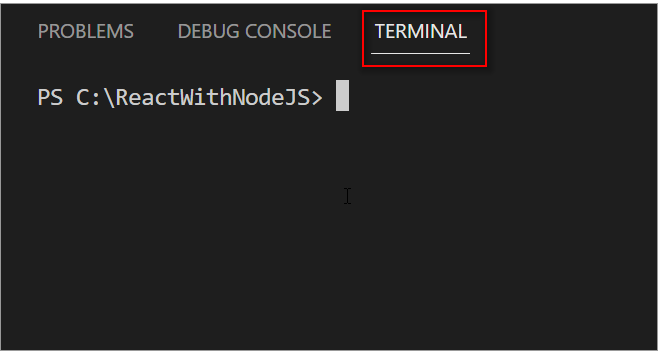

Open the terminal in Visual Studio Code. Please refer to the image below.
Please make sure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link for reference. Additionally, you can refer to the image below for visual guidance.

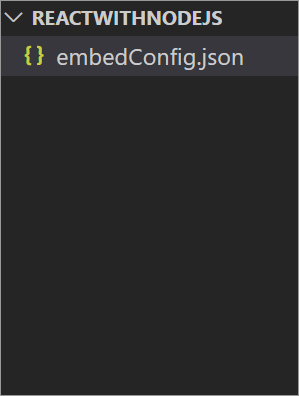

Please copy the downloaded embedConfig.json file and paste it into the specified location within the application. Please make sure that you have placed it in the application as demonstrated in the image below.

Create a JS file named embed.js and create an API called /authorizationserver/get that utilizes the GetSignatureUrl() method for generating the algorithm. Within this API, append the embedQuerString, userEmail, and the value obtained from the GetSignatureUrl() method as query parameters in the URL to get details of a specific dashboard.

   var fs = require("fs");
   var http = require("http");
   var https = require("https");
   var url = require("url");
   var express = require('express');
   var cors = require('cors');
   var app = express();
   var crypto = require('crypto');
   const path = require('path');
   app.use(cors());
   //Parse JSON bodies (as sent by API clients).
   app.use(express.json());

   //Assign a port number for an API to run.
   const port = 8080;

   let appconfig;
   try {
   appconfig = JSON.parse(fs.readFileSync('embedConfig.json'));
   } catch (error) {
   console.error('Error: embedConfig.json file not found.');
   process.exit(1); // Exit the program with a non-zero exit code to indicate an error
   }

   var embedSecret = appconfig.EmbedSecret;

   var userEmail = appconfig.UserEmail;

   app.post('/authorizationserver/get',  async function (req, response){
       var embedQuerString = req.body.embedQuerString;
       var dashboardServerApiUrl = req.body.dashboardServerApiUrl;

       embedQuerString += "&embed_user_email=" + userEmail;
       embedQuerString += "&embed_server_timestamp=" + Math.round((new Date()).getTime() / 1000);
       var embedSignature = "&embed_signature=" + GetSignatureUrl(embedQuerString);
       var embedDetailsUrl = "/embed/authorize?" + embedQuerString+embedSignature;

       var serverProtocol = url.parse(dashboardServerApiUrl).protocol == 'https:' ? https : http;
       serverProtocol.get(dashboardServerApiUrl+embedDetailsUrl, function(res){
           var str = '';
           res.on('data', function (chunk) {
                   str += chunk;
           });
           res.on('end', function () {
               response.send(str);
           });
       });
   })

   function GetSignatureUrl(queryString)
   {
   var keyBytes = Buffer.from(embedSecret);
   var hmac = crypto.createHmac('sha256', keyBytes);
   data = hmac.update(queryString);
   gen_hmac= data.digest().toString('base64');

   return gen_hmac;
   }
   app.get('/GetData', (req, res) => {
   const embedConfigPath = path.join(__dirname, 'embedConfig.json');
   const jsonData = fs.readFileSync(embedConfigPath, 'utf8');
   res.send(jsonData);
   });

   app.listen(port, () => {
   console.log(`Server is running on port ${port}`);
   });

NOTE: Change the port number in embed.js according to your preferences, but if you change the port number of the api host, you must update the port number in the Dashboard.js.

Create a new file and name it package.json. Installing the packages listed in the following dependencies section is essential.

    {
        "name": "ReactWithNodeJS",
        "version": "1.0.0",
        "description": "",
        "main": "embed.js",
        "dependencies": {
            "@boldbi/boldbi-embedded-sdk": "6.6.12",
             "cors": "^2.8.5",
             "express": "^4.18.2"
         },
         "devDependencies": {
             "npm-run-all": "^4.1.5"
         },
        "scripts": {
            "start": "npm-run-all --parallel start-embed start-client",
            "start-embed": "node embed.js",
            "start-client": "cd client && npm start"
        },
        "keywords": [],
        "author": "",
        "license": "ISC"
    }

Create a new directory called client and navigate to it.
```
    mkdir client
    cd client
```
Run the command to create the React sample project in the client directory.
```
    npx create-react-app .
```
NOTE: Above comment will create a new React application inside the “client” directory itself without creating an additional subdirectory.
After creating the React sample, navigate back to the previous directory.
```
    cd..
```

Open the client\src folder. Within the client\src folder, create a new folder named Dashboard. Inside the Dashboard folder, create a file named Dashboard.js. In the Dashboard.js file, define the mandatory properties and implement the methods renderDashboard() to render the dashboard, render() to create the DOM elements, and componentDidMount() to contact server as follows.

    import React from 'react';
    import '../index';
    import {BoldBI} from '@boldbi/boldbi-embedded-sdk';


    //NodeJs application would be run on http://localhost:8080, which needs to be set as `apiHost`.
    const apiHost="http://localhost:8080";

    //Url of the authorizationserver action in ValuesController of the NodeJs application.
    const authorizationUrl="/authorizationserver/get";

    class Dashboard extends React.Component {
        constructor(props) {
            super(props);
            this.state = {
            toke: undefined,
            items: [],
            embedConfig: {},
            };
            this.BoldBiObj = new BoldBI();
        };
    }
    export default Dashboard;

NOTE: If you have modified the port number of the API host, ensure that you update the port number in the apiHost within the Dashboard.js file.

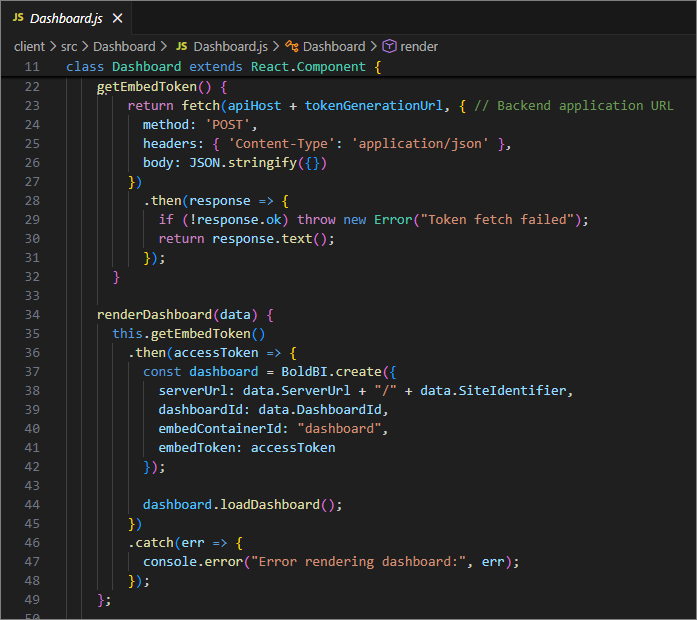

Inside the Dashboard.js file, add the following code to render the dashboard.

 renderDashboard(data) {
    this.dashboard= BoldBI.create({
          serverUrl: data.ServerUrl+"/" + data.SiteIdentifier,
          dashboardId: data.DashboardId,
          embedContainerId: "dashboard",
          embedType: data.EmbedType,
          environment: data.Environment,
          mode:BoldBI.Mode.View,
          width:"100%",
          height: window.innerHeight + 'px',
          expirationTime:100000,
          authorizationServer: {
              url: apiHost + authorizationUrl
          }
      });

      this.dashboard.loadDashboard();
  }

Inside the Dashboard.js file, add the following code. Create a DOM element with the ID dashboard. This element will be used in the renderDashboard() method to render the dashboard within it.

 render() {
    return (
      <div id="Dashboard">
          <div id="viewer-section">
            <div id="dashboard"></div>
          </div>
      </div>
    );
  }

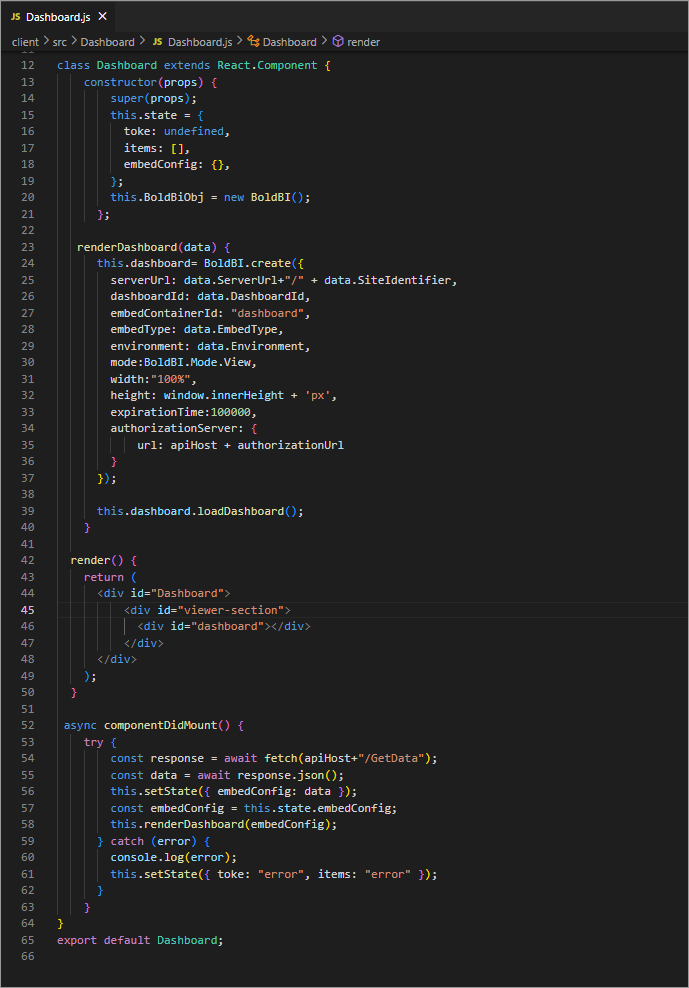

Inside the Dashboard.js file, add the following code, The componentDidMount() method contacts the server to get the token, and with this token, particular dashboard details are collected and passed to the renderDashboard() method to render it.

Dashboard

async componentDidMount() {
    try {
        const response = await fetch(apiHost+"/GetData");
        const data = await response.json();
        this.setState({ embedConfig: data });
        const embedConfig = this.state.embedConfig;
        this.renderDashboard(embedConfig);
      } catch (error) {
        console.log(error);
        this.setState({ toke: "error", items: "error" });
      }
    }

Open the App.js folder, replace the following code. The following code imports the necessary modules, defines the App component, renders the Dashboard component, and exports it for use in other files.

    import React from 'react';
    import Dashboard from './Dashboard/Dashboard';

    class App extends React.Component {
    render() {
        return (
        <div>
        <Dashboard/>
        </div>
        );
    }
    }

    export default App;

Open the Index.js file, replace the following code. These lines of code import the necessary modules React and ReactDOM, import the App component, and use ReactDOM.render to render the App component into the specified HTML element.
```
    import React from 'react';
    import ReactDOM from 'react-dom';
    import App from './App';

    ReactDOM.render(<App />, document.getElementById('root'));
```
Run the following command in the terminal: npm install.
Run the React with Node.js sample, use the following command npm start in visual Studio Code.
After executing the command, the application will automatically launch in the default browser. You can access it at the specified port number (e.g., https://localhost:3000).
