Bold BI Dashboards embedding in React with Go using Embedded SDK

A GitHub link has been provided to get the sample application, which demonstrates the rendering of a dashboard available on your Bold BI server. This is followed by a series of steps to create a new embedding application in React with Go on your own.

NOTE: The best way to get started would be to read the Getting Started section of the documentation first. The Getting Started guide provides you with enough information that you need to know before working on the sample.

Requirements/Prerequisites

NOTE: Node.js versions 18.17 to 20.15 are supported.

How to run the sample

Please get the React with Go Application.
Please ensure that you have enabled embed authentication on the embed settings page. If it is not enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link for reference. Additionally, refer to the following image for visual guidance.

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please make sure you have placed it in the application as shown in the following image.

EmbedConfig Location Image

ServerUrl	Dashboard Server BI URL (ex: http://localhost:5000/bi, http://demo.boldbi.com/bi)
SiteIdentifier	For Bold BI Enterprise edition, it should be like `site/site1`. For Bold BI Cloud, it should be empty string.
Environment	Your Bold BI application environment. (If it is cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your own server, use `BoldBI.Environment.Enterprise`).
DashboardId	Item id of the dashboard to be embedded in your application.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboard
ExpirationTime	Token expiration time. (In the EmbedConfig.json file, the default token expiration time is 10000 seconds).

Open the Go sample in Visual Studio Code.
To run the back-end Go sample, use the following command go run tokengeneration.go.
Open the React sample in a new window of Visual Studio Code.
To install all the necessary packages, use the command npm install.
Please run your React sample using the command npm start.

NOTE: If you are using a React version lower than v18.0, you can update the index.js file by adding the following line. Make sure to replace the existing createRoot line with the following line.

 import ReactDOM from 'react-dom';
 ReactDOM.render(<App />, document.getElementById('root'));

How this sample works

When the componentDidMount function is triggered in a front-end React application, it invokes the /getServerDetails endpoint. This endpoint fetches data from the embedConfig.json file. If the JSON file cannot be found, an error message will be shown.
The dashboard will be rendered using the data obtained from the /getserverdetails endpoint.
Before rendering, the tokenGenerationUrl is called, which redirects to the tokenGeneration action. This action generates the response of dashboard details with token.
Once the token is generated, it will be returned to the Dashboard.js file and the dashboard will start to render it.

Steps to create new React with Go application to embed dashboard

Please create a folder in the desired location and open it in Visual Studio Code.

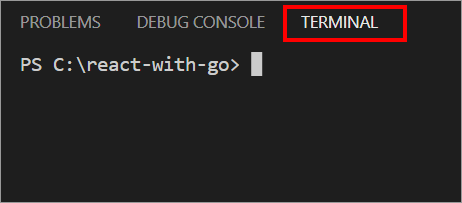

Open the terminal in Visual Studio Code. Please refer to the following image.
Please make sure that you have enabled embed authentication on the embed settings page. If it is currently not enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link for reference. Moreover, you can refer to the accompanying image for visual guidance.
Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please make sure you have placed it in the application as shown in the following image.

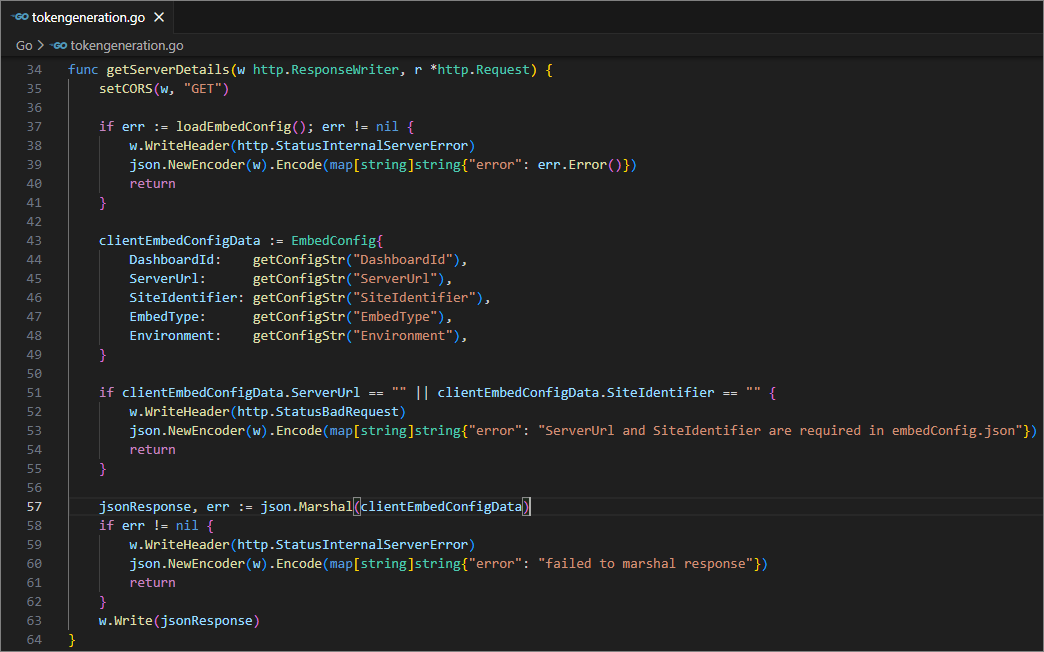

Create a new file called main.go. Next, include the provided code to retrieve data from embedConfig.json.

package main
import (
  "crypto/hmac"
  "crypto/sha256"
  "encoding/base64"
  "encoding/json"
  "os"
  "io"
  "log"
  "net/http"
  "strconv"
  "strings"
  "time"
  "fmt"
)
var embedConfig map[string]interface{}
type EmbedConfig struct {
  DashboardId    string `json:"DashboardId"`
  ServerUrl      string `json:"ServerUrl"`
  EmbedType      string `json:"EmbedType"`
  Environment    string `json:"Environment"`
  SiteIdentifier string `json:"SiteIdentifier"`
}

func main() {
  http.HandleFunc("/authorizationServer", authorizationServer)
  http.HandleFunc("/getServerDetails", getServerDetails)
  fmt.Println("Go server is running on port 8086")
  log.Fatal(http.ListenAndServe(":8086", nil))
}

func getServerDetails(w http.ResponseWriter, r *http.Request) {
  w.Header().Set("Context-Type", "application/x-www-form-urlencoded")
  w.Header().Set("Access-Control-Allow-Origin", "*")
  w.Header().Set("Access-Control-Allow-Methods", "GET")
  w.Header().Set("Access-Control-Allow-Headers", "Content-Type")

  data, err := os.ReadFile("embedConfig.json")
  if err != nil {
    log.Fatal("Error: embedConfig.json file not found.")
  }

  err = json.Unmarshal(data, &embedConfig)

  // Create a custom struct to hold the specific properties you want to return.
  clientEmbedConfigData := EmbedConfig{
    DashboardId:    embedConfig["DashboardId"].(string),
    ServerUrl:      embedConfig["ServerUrl"].(string),
    SiteIdentifier: embedConfig["SiteIdentifier"].(string),
    EmbedType:      embedConfig["EmbedType"].(string),
    Environment:    embedConfig["Environment"].(string),
  }

  jsonResponse, err := json.Marshal(clientEmbedConfigData)
  w.Write(jsonResponse)
}

In main.go, include the following code and create a function called authorizationServer() that utilizes the getSignatureUrl() method to generate the algorithm. Within this function, append the embedQueryString, userEmail, and the value obtained from the getSignatureUrl() method as query parameters in the URL to retrieve details of a specific dashboard.

func authorizationServer(w http.ResponseWriter, r *http.Request) {
  w.Header().Set("Context-Type", "application/x-www-form-urlencoded")
  w.Header().Set("Access-Control-Allow-Origin", "*")
  w.Header().Set("Access-Control-Allow-Methods", "POST")
  w.Header().Set("Access-Control-Allow-Headers", "Content-Type")
  body, err := io.ReadAll(r.Body)
  if err != nil {
    log.Fatalln(err)
  }
  if len(body) > 0 {
    if queryString, err := unmarshal(string(body)); err != nil {
      log.Println("error converting", err)
    } else {
      userEmail := embedConfig["UserEmail"].(string)
      serverAPIUrl := queryString.(map[string]interface{})["dashboardServerApiUrl"].(string)
      embedQueryString := queryString.(map[string]interface{})["embedQuerString"].(string)
      embedQueryString += "&embed_user_email=" + userEmail
      timeStamp := time.Now().Unix()
      embedQueryString += "&embed_server_timestamp=" + strconv.FormatInt(timeStamp, 10)
      signatureString, err := getSignatureUrl(embedQueryString)
      embedDetails := "/embed/authorize?" + embedQueryString + "&embed_signature=" + signatureString
      query := serverAPIUrl + embedDetails
      result, err := http.Get(query)
      if err != nil {
        log.Println(err)
      }
      response, err := io.ReadAll(result.Body)
      if err != nil {
        log.Fatalln(err)
      }
      w.Write(response)
    }
  }
}

func getSignatureUrl(queryData string) (string, error) {
  embedSecret := embedConfig["EmbedSecret"].(string)
  encoding := ([]byte(embedSecret))
  messageBytes := ([]byte(queryData))
  hmacsha1 := hmac.New(sha256.New, encoding)
  hmacsha1.Write(messageBytes)
  sha := base64.StdEncoding.EncodeToString(hmacsha1.Sum(nil))
  return sha, nil
}

func unmarshal(data string) (interface{}, error) {
  var iface interface{}
  decoder := json.NewDecoder(strings.NewReader(data))
  decoder.UseNumber()
  if err := decoder.Decode(&iface); err != nil {
    return nil, err
  }
  return iface, nil
}

Create a folder in the desired location and open it in Visual Studio Code.
To create a new React project as the front-end, we need to run this command in the terminal and navigate to the directory.
```
  npx create-react-app .
```

Open the src folder. Within the src folder, create a new folder named Dashboard. Inside the Dashboard folder, create a file named Dashboard.js. In the Dashboard.js file, define the mandatory properties and implement the methods renderDashboard() to render the dashboard, render() to create the DOM elements, and componentDidMount() to contact the server as follows:

 import React from 'react';
 import '../index';
 import { BoldBI } from '@boldbi/boldbi-embedded-sdk';

 //Url of the authorizationserver action in the Go application(http://localhost:8086/authorizationserver).
 const authorizationUrl = "http://localhost:8086/authorizationServer";

 class Dashboard extends React.Component {
   constructor(props) {
     super(props);
     this.state = { toke: undefined, items: [] };
     this.BoldBiObj = new BoldBI();
   };
 }
 export default Dashboard;

Inside the Dashboard.js file, add the code below to render the dashboard.

  renderDashboard(embedConfig) {
    this.dashboard = BoldBI.create({
      serverUrl: embedConfig.ServerUrl + "/" + embedConfig.SiteIdentifier,
      dashboardId: embedConfig.DashboardId,
      embedContainerId: "dashboard",
      width: "100%",
      height: window.innerHeight + 'px',
      authorizationServer: {
        url: authorizationUrl
      }
    });
    this.dashboard.loadDashboard();
  }

Inside the Dashboard.js file, add the following code: Create a DOM element with the ID dashboard. This element will be used in the renderDashboard() method to render the dashboard within it.

 render() {
      return (
        <div id="DashboardListing">
          <div id="viewer-section">
            <div id="dashboard"></div>
          </div>
        </div>
      );
    }

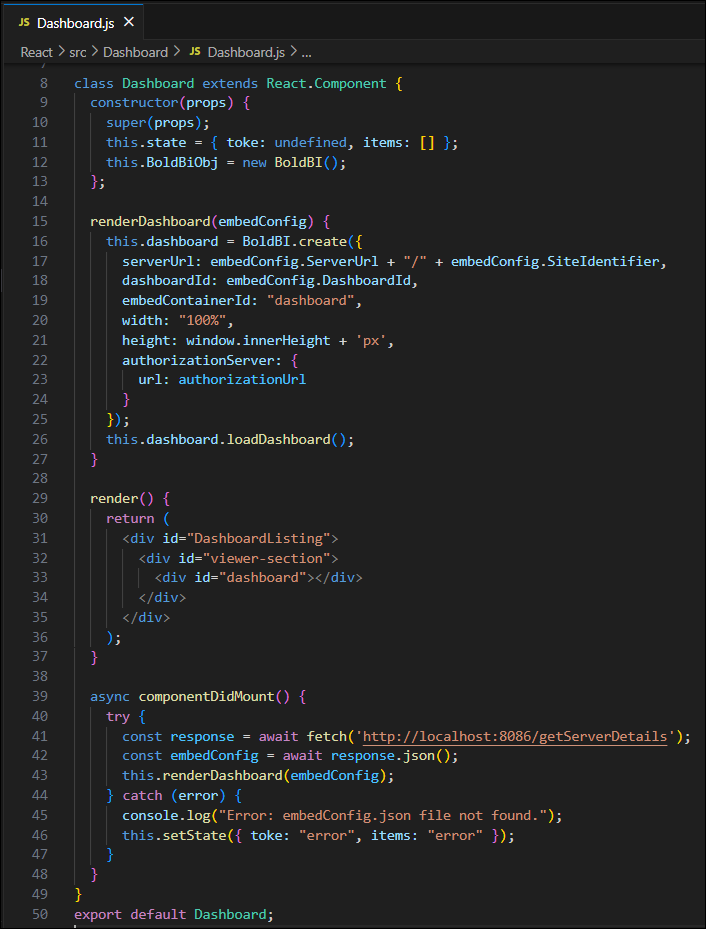

Inside the Dashboard.js file, add the following code: The componentDidMount() method contacts the server to retrieve the token. With this token, specific dashboard details are collected and passed to the renderDashboard() method for rendering.

Dashboard

   async componentDidMount() {
   try {
      const response = await fetch('http://localhost:8086/getServerDetails');
      const embedConfig = await response.json();
      this.renderDashboard(embedConfig);
    } catch (error) {
      console.log("Error: embedConfig.json file not found.");
      this.setState({ toke: "error", items: "error" });
    }
  }

Open the App.js folder and replace the following code: The code imports the necessary modules, defines the App component, renders the Dashboard component, and exports it for use in other files.

  import React from 'react';
  import './App.css';
  import Dashboard from './Dashboard/Dashboard';

  class App extends React.Component {
    render() {
      return (
        <div>
        <Dashboard/>
        </div>
      );
    }
  }

  export default App;

Open the index.js file and replace the following code: These lines of code import the necessary modules React and createRoot. They also import the App component and use createRoot.render to render the App component into the specified HTML element.

import React from 'react';
import {createRoot } from 'react-dom/client';
import App from './App';
import * as serviceWorker from './serviceWorker';

createRoot(document.getElementById('root')).render(<App />);

// If you want your app to work offline and load faster, you can change
// unregister() to register() below. Note this comes with some pitfalls.
// Learn more about service workers: https://bit.ly/CRA-PWA
serviceWorker.unregister();

Please replace the code in package.json with the packages listed in the following dependencies section. Installing these packages is essential.

{
  "name": "embedded-bi-react",
  "version": "0.1.0",
  "private": true,
  "dependencies": {
    "@boldbi/boldbi-embedded-sdk": "^14.1.11",
    "@testing-library/jest-dom": "^5.17.0",
    "@testing-library/react": "^13.4.0",
    "@testing-library/user-event": "^13.5.0",
    "axios": "^0.28.0",
    "jquery": "^3.5.1",
    "react": "^18.2.0",
    "react-dom": "^18.2.0",
    "react-scripts": "5.0.1"
  },
  "scripts": {
    "start": "react-scripts start",
    "build": "react-scripts build",
    "test": "react-scripts test",
    "eject": "react-scripts eject"
  },
  "eslintConfig": {
    "extends": [
      "react-app",
      "react-app/jest"
    ]
  },
  "browserslist": {
    "production": [
      ">0.2%",
      "not dead",
      "not op_mini all"
    ],
    "development": [
      "last 1 chrome version",
      "last 1 firefox version",
      "last 1 safari version"
    ]
  }
}

Next, execute the Go application by running the command go run main.go.
To begin, open the React application and install the required dependencies using the command npm install. After installation, run the sample by executing the command npm start to render the dashboard.
