Bold BI Dashboards embedding in React with ASP.NET Core using Embedded SDK

A GitHub link has been provided to get the sample application that demonstrates the rendering of the dashboard on your Bold BI server. This will be followed by steps to create a new embedding application in React with ASP.NET Core on your own.

NOTE: The best way to get started would be by reading the Getting Started section of the documentation first. The Getting Started guide provides all the necessary information you need to know before working on the sample.

Prerequisites

NOTE: Node.js versions 18.18 to 20.15 are supported.

How to run the sample

Please get the React with ASP.NET Core sample from GitHub.
Please ensure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the provided image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link as a reference. Additionally, you can consult the following image for visual guidance.

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Make sure you have placed it in the application as shown in the following image.

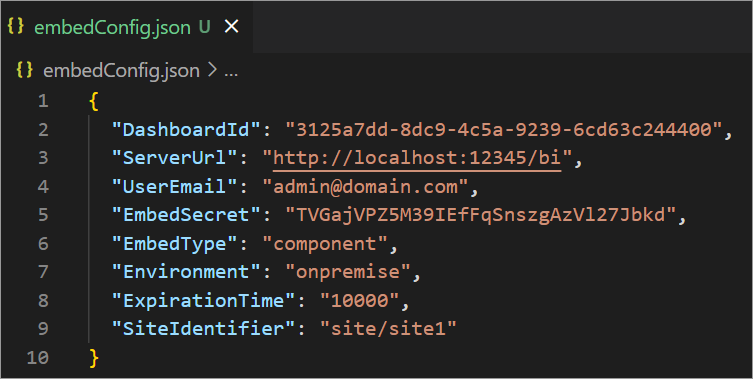

EmbedConfig image

ServerUrl	Dashboard Server BI URL (ex: http://localhost:5000/bi, https://demo.boldbi.com/bi)
SiteIdentifier	For the Bold BI Enterprise edition, it should be like site/site1. For Bold BI Cloud, it should be an empty string.
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboard list.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
Environment	Your Bold BI application environment. (If it is a cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your server, use `BoldBI.Environment.Enterprise`)
DashboardId	Item ID of the dashboard to be embedded in your application.
ExpirationTime	Token expiration time. (In the EmbedConfig.json file, the default token expiration time is 10000 seconds)

Open your React with ASP.NET Core project in Visual Studio Code and install all dependent packages by using the following command npm install.
Execute the command dotnet restore to restore the necessary packages. Once the packages have been restored, use the dotnet build command to build the project.
Run your React with ASP.NET Core sample by using the command dotnet run in Visual Studio Code.

NOTE:

If you are experiencing issues with the validity of the ASP.NET Core developer certificate, you can try the following commands to resolve it: dotnet dev-certs https --clean, dotnet dev-certs https and dotnet dev-certs https --trust.

If you are using a React version lower than v18.0, you can update the index.js file by adding the following line. Make sure to replace the existing createRoot line with the following line.

 import ReactDOM from 'react-dom';
 ReactDOM.render(<App />, document.getElementById('root'));

How this sample works

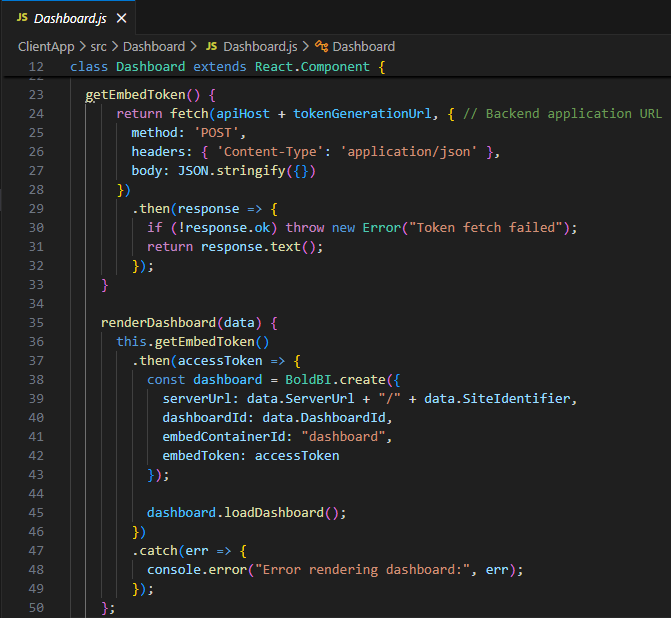

The renderDashboard method will be invoked from the componentDidMount() function based on the configured embedConfig values in the Dashboard.js file.

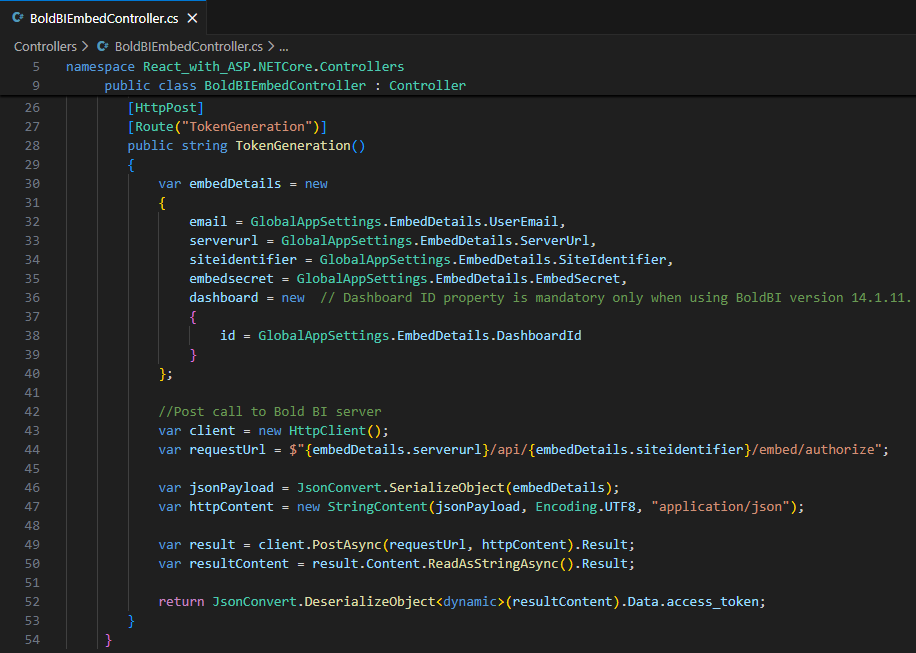

Before rendering, call the tokenGenerationUrl, which redirects to the TokenGeneration action in the BoldBIEmbedController. This action generates the access token using the provided embedDetails of the ASP.NET Core application.
Once the token is generated, it will be returned to the Dashboard.js file and the dashboard will start to render it.

Steps to create new React with ASP.NET Core application to embed dashboard

Create a folder in the desired location and open it in Visual Studio Code.

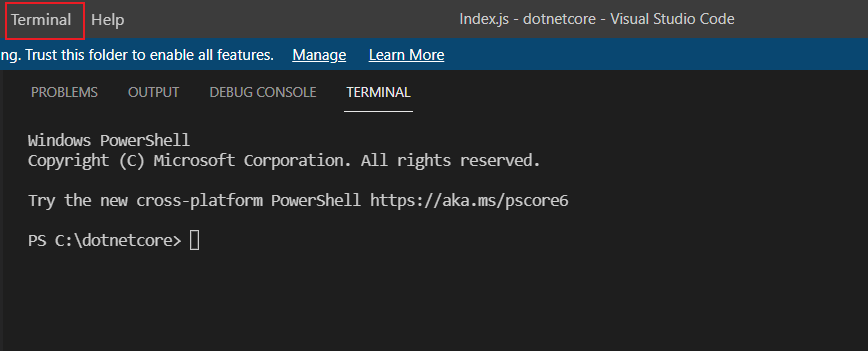

Open the terminal in Visual Studio Code. Please refer to the image below.
To create a new project, you should run this command in the terminal.
```
     dotnet new react
```

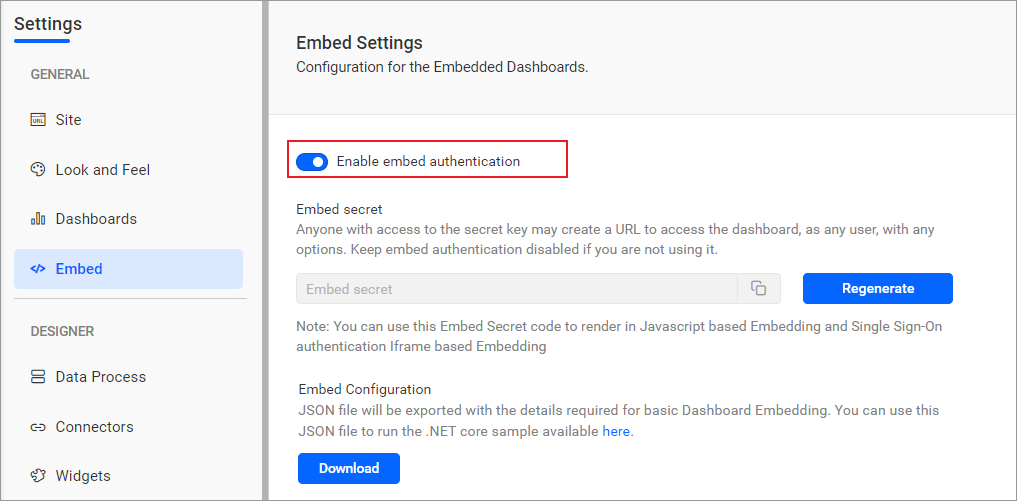

Please ensure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.

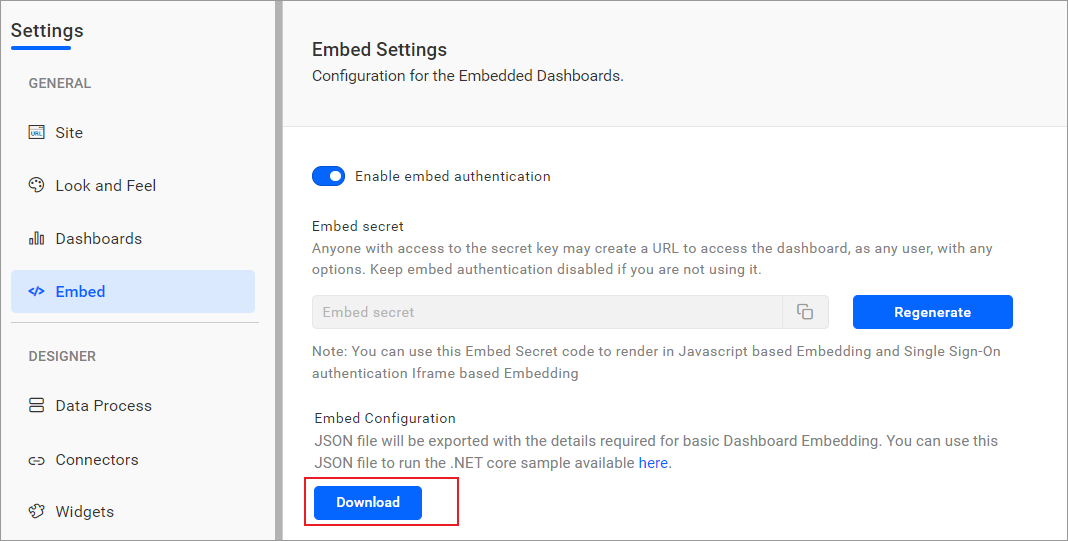

To download the embedConfig.json file, please click on the following link for reference. Furthermore, you can consult the accompanying image for visual assistance.

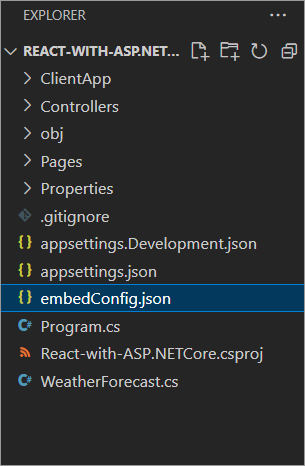

Copy the downloaded embedConfig.json file and paste it into the designated location within the application. Make sure you have placed it correctly in the application, as shown in the following image.

Please create a new folder named Models. Inside this folder, create a model class called DataClass.cs to define the following properties. These properties are used to retrieve the dashboard details from the server.

To add the necessary references to the project, execute the following commands in the terminal: dotnet add package Newtonsoft.Json and dotnet add package System.Runtime.Serialization.Primitives. Make sure to include the System.Runtime.Serialization and Newtonsoft.Json namespaces in the DataClass.cs model file.

     [DataContract]
     public class EmbedClass
     {
        [DataMember]
        public string embedQuerString { get; set; }
        [DataMember]
        public string dashboardServerApiUrl { get; set; }
     }

      public class EmbedDetails
      {
         public string Environment { get; set; }

         public string SiteIdentifier { get; set; }

         public string ServerUrl { get; set; }

         public string EmbedSecret { get; set; }

         public string UserEmail { get; set; }

         public string EmbedType { get; set; }

         public string DashboardId { get; set; }
      }

Create another model class, GlobalAppSettings.cs to define the following properties. These properties maintain the object of the embedConfig.json file within the GlobalAppSettings.
```
    public class GlobalAppSettings
    {
        public static EmbedDetails EmbedDetails { get; set; }
    }
```

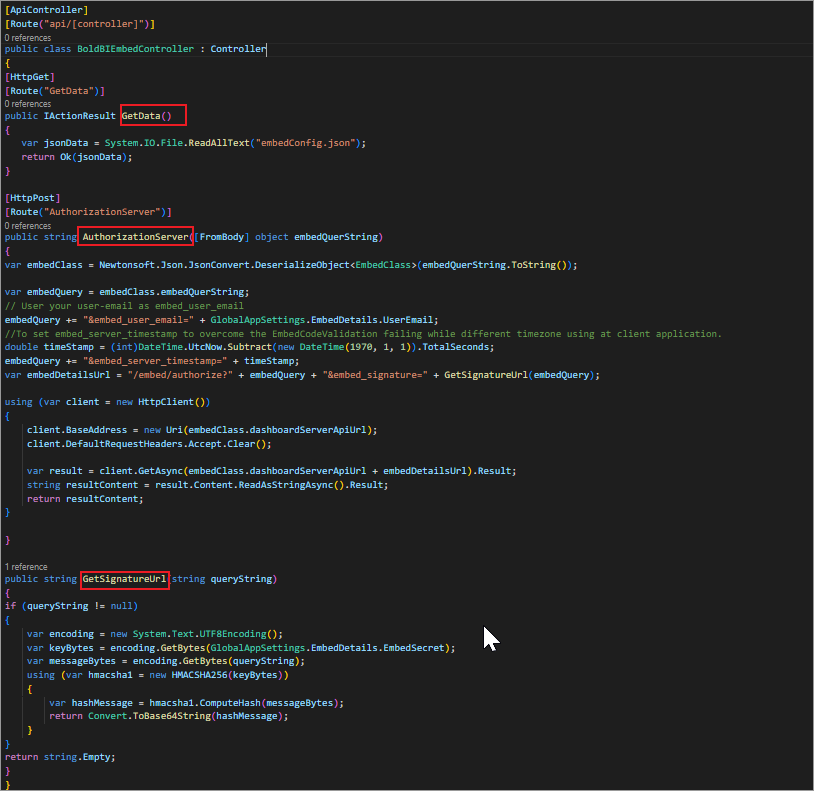

Create a new controller named BoldBIEmbedController.cs. Inside the Controllers\BoldBIEmbedController.cs file, define an API called AuthorizationServer() to retrieve specific dashboard details. This API should use the GetSignatureUrl() method to generate the algorithm. Append the embedQuerString, userEmail and the value obtained from the GetSignatureUrl() method as query parameters in the URL to retrieve the details of a particular dashboard. Finally, call the renderDashboard() method in the React application using these details.

Ensure the System.Security.Cryptography and Microsoft.AspNetCore.Mvc namespaces in the BoldBIEmbedController.cs.

EmbedConfig image

     [ApiController]
     [Route("api/[controller]")]
     public class BoldBIEmbedController : Controller
     {
     [HttpGet]
     [Route("GetData")]
     public IActionResult GetData()
     {
        var jsonData = System.IO.File.ReadAllText("embedConfig.json");
        return Ok(jsonData);
     }

     [HttpPost]
     [Route("AuthorizationServer")]
     public string AuthorizationServer([FromBody] object embedQuerString)
     {
     var embedClass = Newtonsoft.Json.JsonConvert.DeserializeObject<EmbedClass>(embedQuerString.ToString());

     var embedQuery = embedClass.embedQuerString;
     // User your user-email as embed_user_email
     embedQuery += "&embed_user_email=" + GlobalAppSettings.EmbedDetails.UserEmail;
     //To set embed_server_timestamp to overcome the EmbedCodeValidation failing while different timezone using at client application.
     double timeStamp = (int)DateTime.UtcNow.Subtract(new DateTime(1970, 1, 1)).TotalSeconds;
     embedQuery += "&embed_server_timestamp=" + timeStamp;
     var embedDetailsUrl = "/embed/authorize?" + embedQuery + "&embed_signature=" + GetSignatureUrl(embedQuery);

     using (var client = new HttpClient())
     {
         client.BaseAddress = new Uri(embedClass.dashboardServerApiUrl);
         client.DefaultRequestHeaders.Accept.Clear();

         var result = client.GetAsync(embedClass.dashboardServerApiUrl + embedDetailsUrl).Result;
         string resultContent = result.Content.ReadAsStringAsync().Result;
         return resultContent;
     }

     }

     public string GetSignatureUrl(string queryString)
     {
     if (queryString != null)
     {
         var encoding = new System.Text.UTF8Encoding();
         var keyBytes = encoding.GetBytes(GlobalAppSettings.EmbedDetails.EmbedSecret);
         var messageBytes = encoding.GetBytes(queryString);
         using (var hmacsha1 = new HMACSHA256(keyBytes))
         {
             var hashMessage = hmacsha1.ComputeHash(messageBytes);
             return Convert.ToBase64String(hashMessage);
         }
     }
     return string.Empty;
     }
     }

Open the Program.cs file. These lines of code configure a permissive CORS policy that allows requests from any origin, HTTP method, and headers. It is crucial to consider the security implications and adapt the policy to meet the application requirements. Make sure to ensure the Newtonsoft.Json namespaces in the Program.cs files.

     app.UseCors(corsPolicyBuilder => corsPolicyBuilder
     .AllowAnyOrigin().AllowAnyMethod().AllowAnyHeader());
     string basePath = AppDomain.CurrentDomain.BaseDirectory;
     string jsonString = System.IO.File.ReadAllText(Path.Combine(basePath, "embedConfig.json"));
     GlobalAppSettings.EmbedDetails = JsonConvert.DeserializeObject<EmbedDetails>(jsonString);

Create a new file and name it package.json. It is essential to install the packages that are listed in the dependencies section below.

  {
    "name": "embedded-bi-react",
    "version": "0.1.0",
    "private": true,
    "dependencies": {
    "@boldbi/boldbi-embedded-sdk": "^6.4.6",
    "@testing-library/jest-dom": "^4.2.4",
    "@testing-library/react": "^9.4.0",
    "@testing-library/user-event": "^7.2.1",
    "axios": "^0.19.2",
    "jquery": "^3.5.1",
    "react": "^16.12.0",
    "react-dom": "^16.12.0",
    "react-scripts": "^3.4.0"
   }
  }

Open the ClientApp\src folder. Within the ClientApp\src folder, create a new folder named DashboardListing. Inside the DashboardListing folder, create a file named DashboardListing.js. In the DashboardListing.js file, define the mandatory properties and implement the methods renderDashboard() to render the dashboard, render() to create the DOM elements and componentDidMount() to contact server as follows.

    import React from 'react';
    import '../index';
    import { BoldBI } from '@boldbi/boldbi-embedded-sdk';

   //ASP.NET Core application would be run on "https://localhost:7222;http://localhost:5137", which needs to be set as `apiHost`
   const apiHost = "https://localhost:7222";

   //Url of the AuthorizationServer action in ValuesController of the ASP.NET Core application
   const authorizationUrl = "/api/boldbiembed/authorizationserver";
   var BoldBiObj;
   class DashboardListing extends React.Component {
   constructor(props) {
     super(props);
     this.state = {
       toke: undefined,
       items: [],
       embedConfig: {},
     };
    this.BoldBiObj = new BoldBI();
    }
   }

NOTE: Open the launchSettings.json file and copy the applicationUrl. Paste it in the apiHost.

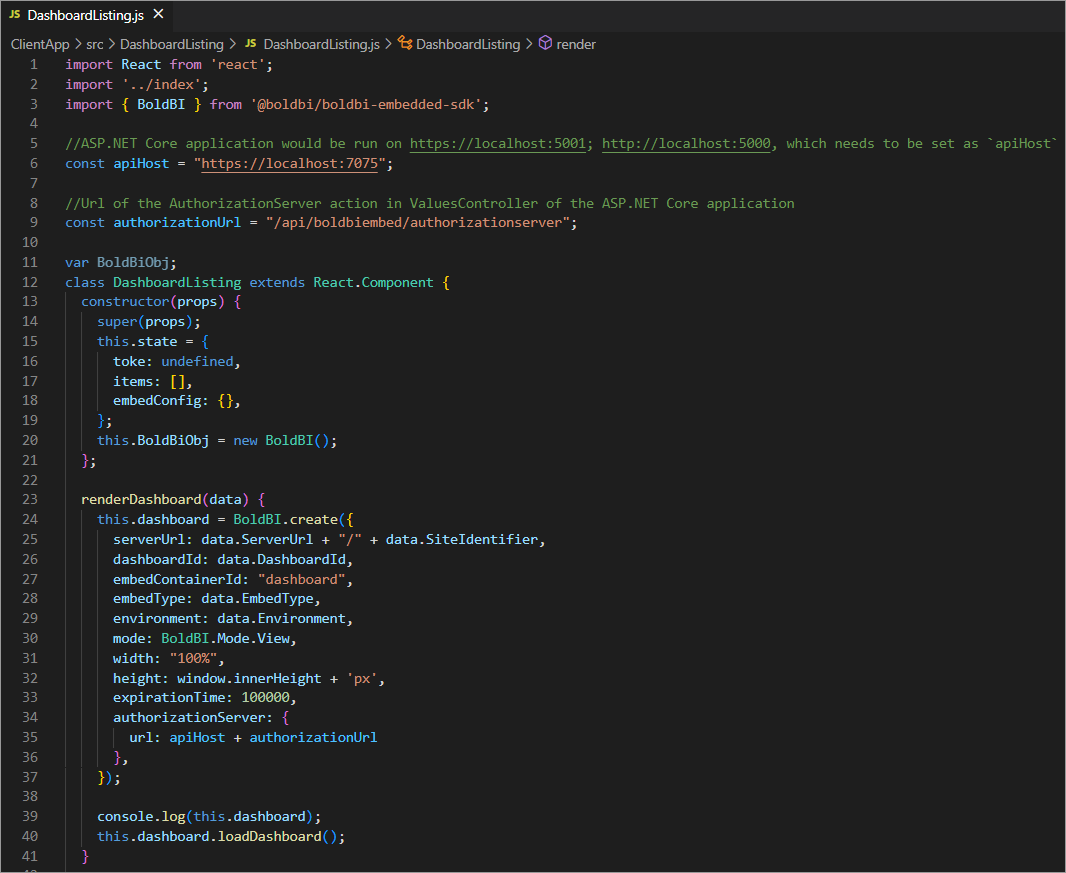

In DashboardListing.js file, include this method. Inside the renderDashboard() method, use the following code to render the dashboard.

DashboardListing Image

   renderDashboard(data) {
      this.dashboard = BoldBI.create({
      serverUrl: data.ServerUrl + "/" + data.SiteIdentifier,
      dashboardId: data.DashboardId,
      embedContainerId: "dashboard",
      embedType: data.EmbedType,
      environment: data.Environment,
      mode: BoldBI.Mode.View,
      width: "100%",
      height: window.innerHeight + 'px',
      expirationTime: 100000,
      authorizationServer: {
      url: apiHost + authorizationUrl
   },
   });

   console.log(this.dashboard);
   this.dashboard.loadDashboard();
   }

In DashboardListing.js file, include this method. Create a DOM element with the ID dashboard. which will be utilized in the renderDashboard() method to render the dashboard within it.

   render() {
       return (
           <div id="viewer-section">
               <div id="dashboard"></div>
           </div>
       );
   }

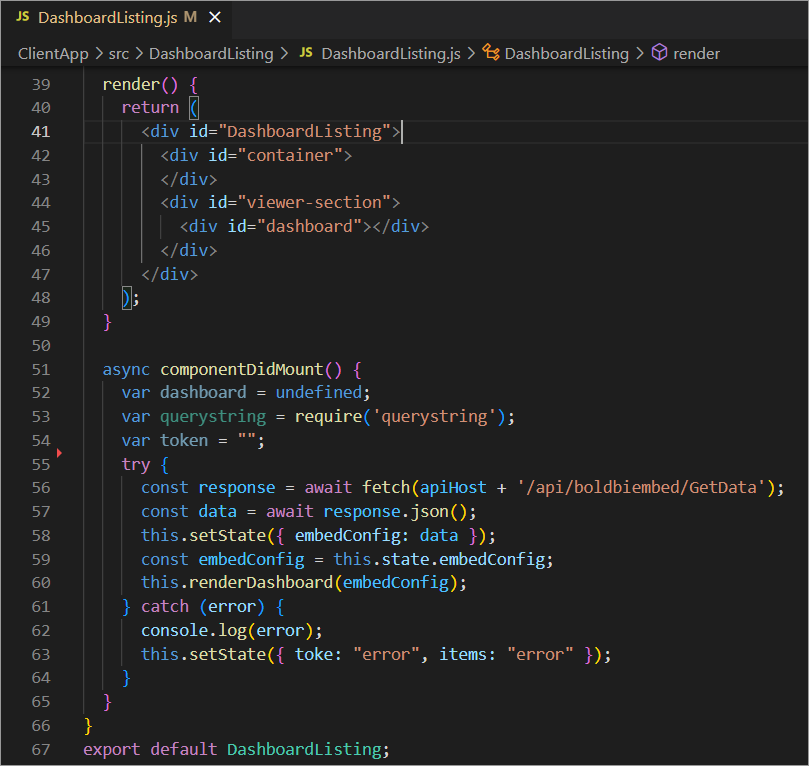

In DashboardListing.js file, include this method. The componentDidMount() method contacts the server to retrieve the token. With this token, specific dashboard details are collected and passed to the renderDashboard() method for rendering.

DashboardListing Image

   async componentDidMount() {
   var dashboard = undefined;
   var querystring = require('querystring');
   var token = "";

   try {
     const response = await fetch(apiHost + '/api/boldbiembed/GetData');
     const data = await response.json();
     this.setState({ embedConfig: data });
     const embedConfig = this.state.embedConfig;
     this.renderDashboard(embedConfig);
   } catch (error) {
   console.log(error);
   this.setState({ toke: "error", items: "error" });
   }
   }

   export default DashboardListing;

Open the App.js, replace the code below. This code imports the necessary modules, defines the App component, renders the DashboardListing component, and exports it for use in other files.

      import React from 'react';
      import DashboardListing from './DashboardListing/DashboardListing';

      class App extends React.Component {
      render() {
         return (
           <div>
           <DashboardListing/>
           </div>
           );
          }
      }

      export default App;

Open the Index.js file and replace the code below. These lines of code import the necessary modules React and ReactDOM. import the App component, and use ReactDOM.render to render the App component into the specified HTML element.
```
      import React from 'react';
      import ReactDOM from 'react-dom';
      import App from './App';

      ReactDOM.render(<App />, document.getElementById('root'));
```
To install all dependent packages, use the following command npm install. Run the command dotnet restore to restore the necessary packages. Once the packages have been restored, use the dotnet build command to build the project.
Run the React sample with Core sample, use the following command dotnet run in visual Studio Code.

NOTE: If you encounter any issues with the validity of the ASP.NET Core developer certificate, you can try resolving it by using the following commands: dotnet dev-certs https --clean, dotnet dev-certs https and dotnet dev-certs https --trust.
