Bold BI Dashboards embedding in Node.js using Embedded SDK

A GitHub link has been provided to get the sample application, which demonstrates the rendering of the dashboard available on your Bold BI server. This is followed by steps to create a new embedding application in Node.js on your own.

NOTE: The best way to get started would be to read the Getting Started section of the documentation first. The Getting Started guide provides you with enough information that you need to know before working on the sample.

Prerequisites

NOTE: Node.js versions 18.18 to 20.15 are supported.

How to run the sample

Please get the Node.js sample from GitHub.
Please ensure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link for reference. Furthermore, you can refer to the accompanying image for visual guidance.

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Make sure to place it in the application as shown in the following image.

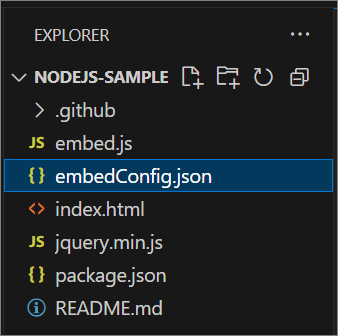

EmbedConfig Location Image

ServerUrl	Dashboard Server BI URL (ex: http://localhost:5000/bi, http://demo.boldbi.com/bi)
siteIdentifier	For Bold BI Enterprise edition, it should be like `site/site1`. For Bold BI Cloud, it should be empty string.
environment	Your Bold BI application environment. (If it is cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your own server, use `BoldBI.Environment.Enterprise`).
DashboardId	Item id of the dashboard to be embedded in your application.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboards list.
ExpirationTime	Token expiration time. (In the EmbedConfig.json file, the default token expiration time is 10000 seconds).

To install all the necessary packages, please use the following command.
```
     npm install
```
To run the samples, please use the following command.
```
     node tokengeneration.js
```

How this sample works

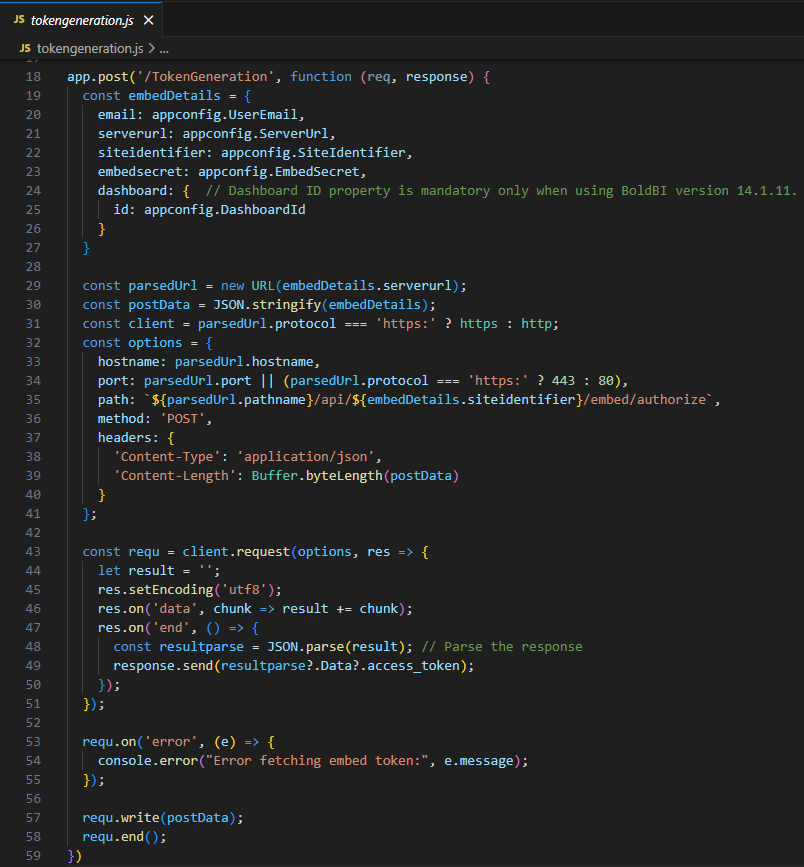

To generate an access token, call the TokenGeneration API (http://localhost:8080/TokenGeneration) with the provided embedConfig values.
Once the token is generated, it will be returned to the index.html file and the dashboard will start to render it.

Steps to create new Node.js application to embed dashboard

Create a folder in the desired location and open it in Visual Studio Code.

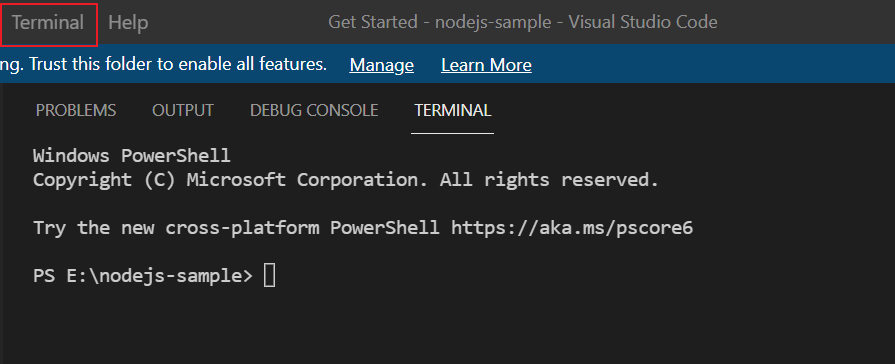

Open the terminal in Visual Studio Code. Please refer to the following image.

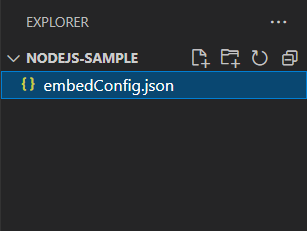

Please ensure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please follow this link for reference. Additionally, you can refer to the following image for visual guidance.
Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Make sure you have placed it in the application exactly as shown in the following image.
Create a JavaScript file named embed.js and an html file named index.html.

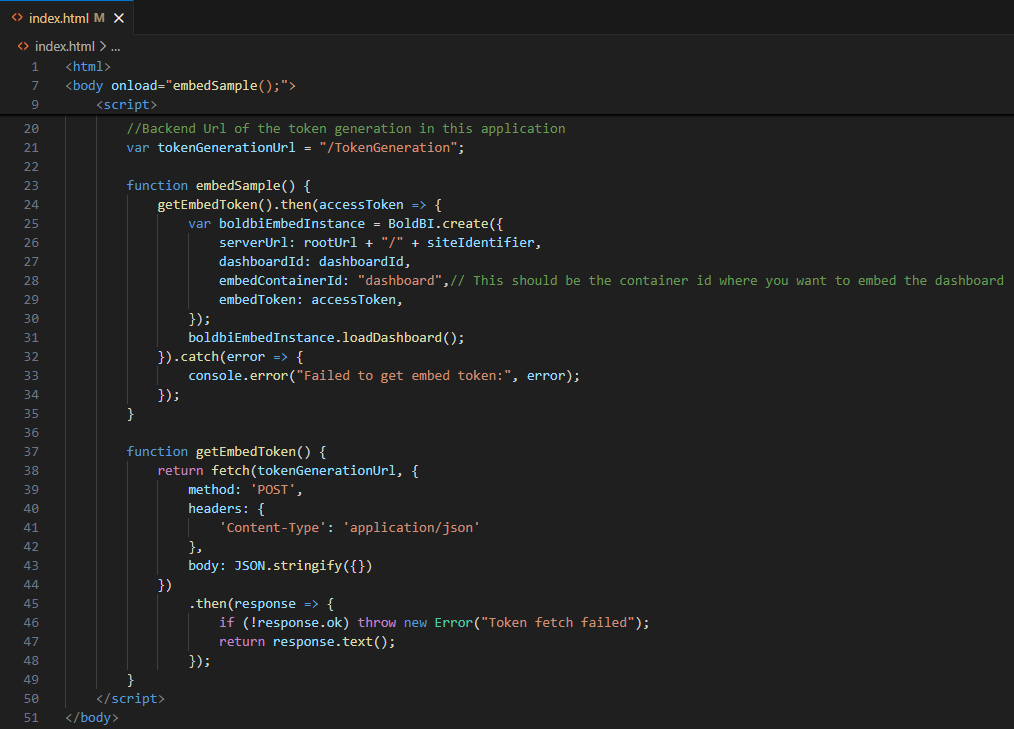

In the index.html file, refer to the mandatory file in the tag. The tag initializes the embedSample() method, and the DOM element with the dashboard id is created in the <div> tag where the required dashboard will be rendered.
```
<head>
    <script type="text/javascript" src="https://cdn.boldbi.com/embedded-sdk/v15.2.6/boldbi-embed.js"></script>
</head>
<body onload="embedSample();">
    <div id="dashboard"></div>
</body>
```

In the <script> tag, define the required properties as follows:


    <script>
       //For Bold BI Enterprise edition, it should be like `site/site1`. For Bold BI Cloud, it should be empty string.
       var siteIdentifier = configjson.SiteIdentifier;

       //Your Bold BI application environment. (If Cloud, you should use `cloud`, if Enterprise, you should use `enterprise`)
       var environment = configjson.Environment;

       var embedType = configjson.EmbedType;

       //Item id of the dashboard in the Bold BI server`
       var dashboardId = configjson.DashboardId;

       //Bold BI Server URL (ex: http://localhost:5000/bi, http://demo.boldbi.com/bi)
       var rootUrl = configjson.ServerUrl;

       //Url of the GetDetails(API) in this application
       var authorizationUrl="http://localhost:8080/embeddetail/get";

       function embedSample() {
           var boldbiEmbedInstance = BoldBI.create({
               serverUrl: rootUrl + "/" + siteIdentifier,//Dashboard Server BI URL (ex: http://localhost:5000/bi/site/site1, http://dashboard.syncfusion.com/bi/site/site1)
               dashboardId: dashboardId, //Item id of the dashboard in BI server.
               embedContainerId: "dashboard", // This should be the container id where you want to embed the dashboard.
               embedType: embedType,
               environment: environment, // If Cloud, you should use BoldBI.Environment.Cloud
               mode: BoldBI.Mode.View,
               height: "800px",
               width: "1200px",
               authorizationServer: {
                   url: "http://localhost:8080/embeddetail/get" //Url of the GetDetails(API) in this application.
               },
               expirationTime: "100000", //Set the duration for the token to be alive.
           });
           boldbiEmbedInstance.loadDashboard();
       }
   </script>

In the javascript file, create an API /embeddetail/get that utilizes the GetSignatureUrl() method to generate the algorithm. In this API, append the embedQuerString,userEmail and the value from the GetSignatureUrl() method as query parameters in the URL to retrieve details of a specific dashboard.

      var express = require('express');
      var app = express();
      var url = require("url");
      var cors = require('cors');
      var fs = require("fs");
      app.use(cors());
      var http = require("http");
      var https = require("https");
      var crypto = require('crypto');
      // Parse JSON bodies (as sent by API clients)
      app.use(express.json());

      var appconfig = JSON.parse(fs.readFileSync('embedConfig.json'));

      // Get the embedSecret key from Bold BI
      var embedSecret = appconfig.EmbedSecret;

      var configjson ={"DashboardId": appconfig.DashboardId, "ServerUrl": appconfig.ServerUrl, "SiteIdentifier": appconfig.SiteIdentifier, "Environment": appconfig.Environment, "EmbedType": appconfig.EmbedType};

      //Enter your BoldBI credentials here
      var userEmail = appconfig.UserEmail;

      app.post('/embeddetail/get', function (req, response) {
      var embedQuerString = req.body.embedQuerString;
      var dashboardServerApiUrl = req.body.dashboardServerApiUrl;

      embedQuerString += "&embed_user_email=" + userEmail;
      embedQuerString += "&embed_server_timestamp=" + Math.round((new Date()).getTime() / 1000);
      var embedSignature = "&embed_signature=" + GetSignatureUrl(embedQuerString);
      var embedDetailsUrl = "/embed/authorize?" + embedQuerString+embedSignature;

      var serverProtocol = url.parse(dashboardServerApiUrl).protocol == 'https:' ? https : http;
      serverProtocol.get(dashboardServerApiUrl+embedDetailsUrl, function(res){
           var str = '';
           res.on('data', function (chunk) {
               str += chunk;
           });
           res.on('end', function () {
               response.send(str);
           });
       });
       })

       function GetSignatureUrl(queryString)
       {
         var keyBytes = Buffer.from(embedSecret);
         var hmac = crypto.createHmac('sha256', keyBytes);
         data = hmac.update(queryString);
         gen_hmac= data.digest().toString('base64');

         return gen_hmac;
       }

       app.get("/",function (request, response) {

       var pathname = url.parse(request.url).pathname;
       console.log("Request for " + pathname + " received.");

       response.writeHead(200);

       if(pathname == "/") {
       html = fs.readFileSync("index.html", "utf8");
       html = html.replace("<script>","<script>var configjsonstring='"+JSON.stringify(configjson)+"';var configjson=JSON.parse(configjsonstring);");
       response.write(html);
       }
       response.end();
       })

       var server = app.listen(8080, function () {
       var host = server.address().address
       var port = server.address().port
       console.log("Example app listening at http://%s:%s", host, port)
       })

Create a new file and name it package.json. It is essential to install the packages listed in the following dependencies section.

     {
       "name": "NodeJS",
       "version": "",
       "description": "",
       "main": "embed.js",
       "dependencies": {
            "cors": "",
            "express": "",
            "utf8-bytes": ""
           }
      }

Please run the following commands in the terminal: npm install, npm install express, npm install cors and npm install utf8-bytes.
To run the sample, execute the following command.
```
   node embed.js
```
Once you execute the command above, the sample will be hosted at http://localhost:8080/.
