Embedding Bold BI Dashboards in Flutter using the Embedded SDK

A GitHub link is provided to access the sample application, demonstrating the rendering of a dashboard on your Bold BI server. Following are the steps to create your own embedding application in Flutter.

NOTE: Reading the Getting Started section of the documentation is the best way to begin. The Getting Started guide provides all the necessary information before working on the sample.

Prerequisites

To run the samples, you will need the following:

VS Code
Flutter SDK
Node.js and npm
Google Chrome(for Flutter web)

How to Run the Sample

Download the Flutter with JavaScript sample from GitHub.
Ensure you have enabled embed authentication on the embed settings page. If not, refer to instructions to enable it.
Download the embedConfig.json file by following this link. Refer to the image below for guidance.

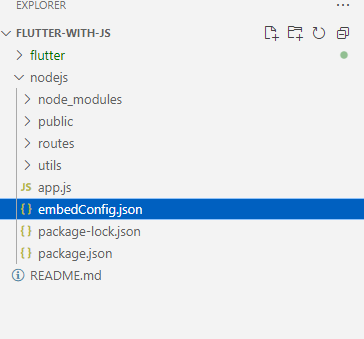

Copy the downloaded embedConfig.json file and paste it into the designated location within the application.
Navigate to the nodejs backend folder and install dependencies:
```
cd nodejs
npm install
```
Start the server using the following command:
```
node app.js
```
Note: The server will run on port 8080. If you want to change the port, you can do so in the app.js file.
Navigate to the flutter folder and install dependencies:
```
cd flutter-sample
flutter pub get
```
Ensure web support is enabled:
```
flutter devices
```
Run the app with the following command to open it in Chrome:
```
flutter run -d chrome
```

How This Sample Works

In api.js, the /getdetails route reads values from embedConfig.json and provides them to the front-end as JSON. These values are used for initializing the BoldBI SDK.

router.get('/getdetails', (req, res) => {
  const serverEmbedConfigData = path.join(__dirname, '../embedConfig.json');
  const jsonData = fs.readFileSync(serverEmbedConfigData, 'utf8');
  const parsedData = JSON.parse(jsonData);

  const clientEmbedConfigData = {
    DashboardId: parsedData.DashboardId,
    ServerUrl: parsedData.ServerUrl,
    SiteIdentifier: parsedData.SiteIdentifier,
    EmbedType: parsedData.EmbedType,
    Environment: parsedData.Environment
  };
  res.send(clientEmbedConfigData);
});

The renderDashboard(dashboardId) function runs when the page loads, initializing the BoldBI.create() function with key parameters.

function renderDashboard(dashboardId) {
  var dashboard = BoldBI.create({
    serverUrl: ServerUrl + "/" + SiteIdentifier,
    dashboardId: dashboardId,
    embedContainerId: "dashboard",
    embedType: BoldBI.EmbedType.Component,
    mode: BoldBI.Mode.View,
    environment: Environment,
    expirationTime: 100000,
    authorizationServer: {
      url: apiUrl + "/authorizationserver"
    }
  });
  dashboard.loadDashboard();
}

The authorizationserver route constructs the embed signature using the EmbedSecret key for secure communication.

router.post('/authorizationserver', async (req, res) => {
  let embedQuerString = req.body.embedQuerString;
  const dashboardServerApiUrl = req.body.dashboardServerApiUrl;

  embedQuerString += "&embed_user_email=" + userEmail;
  embedQuerString += "&embed_server_timestamp=" + Math.round(Date.now() / 1000);
  const embedSignature = "&embed_signature=" + getSignatureUrl(embedQuerString, embedSecret);
  const embedDetailsUrl = "/embed/authorize?" + embedQuerString + embedSignature;

  const serverProtocol = url.parse(dashboardServerApiUrl).protocol === 'https:' ? https : http;

  serverProtocol.get(dashboardServerApiUrl + embedDetailsUrl, function(response) {
    let str = '';
    response.on('data', function(chunk) {
      str += chunk;
    });
    response.on('end', function() {
      res.send(str);
    });
  });
});

The dashboard is securely embedded in the #dashboard container in index.html after successful token validation.

<body onload="Init()">
  <div id="viewer-section" style="width: 100%;">
    <div id="dashboard"></div>
  </div>
</body>

Steps to Create a New Flutter Application to Embed a Dashboard

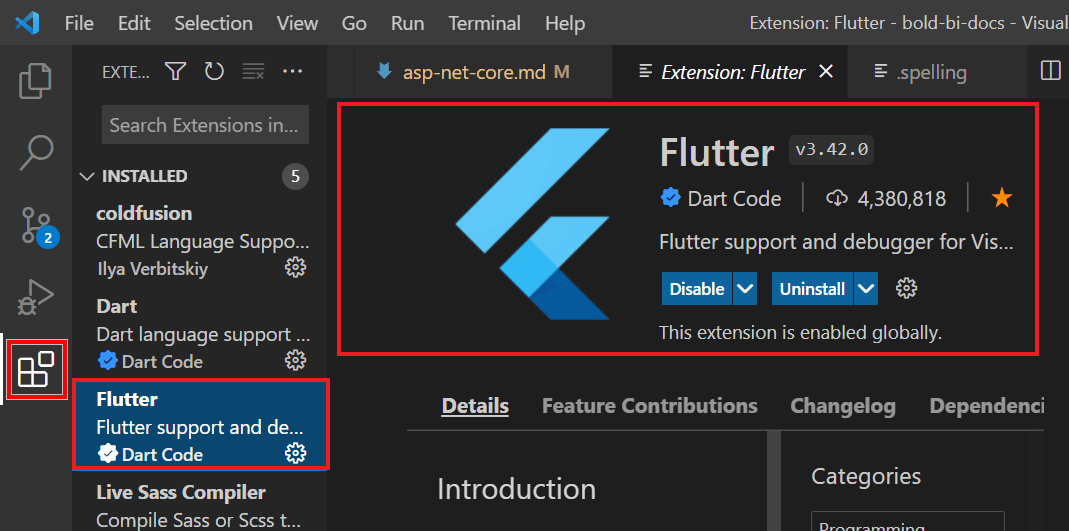

Install the Flutter in the visual studio code.
Download Android Studio from the official website provided, download the Flutter SDK from the official website provided, and include the paths in the system environment variable.
Create a folder for this project in the desired location and open it in Visual Studio Code.
Create the Flutter folder, run a command in the Visual Studio terminal as flutter create my_app. Here, my_app is the Flutter project name. Change the directory by running the command cd my_app.
In the web/index.html file of the Flutter project, include the following script in the <head> tag to load the BoldBI SDK:
```
<script type="text/javascript" src="https://cdn.boldbi.com/embedded-sdk/latest/boldbi-embed.js"></script>
```

In the <body> tag, invoke the Init() method and define the viewer container as follows:

<body onload="Init()">
  <div id="viewer-section">
    <div id="dashboard"></div>
  </div>
</body>

The Init() method fetches dashboard configuration from the backend API and triggers the embedding:

async function Init() {
  try {
    const res = await fetch('http://localhost:8080/api/getdetails');
    const config = await res.json();

    ServerUrl = config.ServerUrl;
    SiteIdentifier = config.SiteIdentifier;
    Environment = config.Environment;
    DashboardId = config.DashboardId;

    renderDashboard(DashboardId);
  } catch (err) {
    console.error('Error initializing embed:', err);
  }
}

Create an Express.js backend (api.js) that exposes two endpoints: one for returning embed config and one for secure authentication:

/api/getdetails: Returns DashboardId, ServerUrl, SiteIdentifier, and other info from embedConfig.json.
/api/authorizationserver: Appends user email and timestamp to the query string, signs it using EmbedSecret, and securely fetches the embed token from BoldBI.

const express = require('express');
const router = express.Router();
const fs = require('fs');
const url = require('url');
const http = require('http');
const https = require('https');
const path = require('path');

const { getSignatureUrl } = require('../utils/signature');

let appconfig = JSON.parse(fs.readFileSync(path.join(__dirname, '../embedConfig.json')));
const embedSecret = appconfig.EmbedSecret;
const userEmail = appconfig.UserEmail;

router.post('/authorizationserver', async (req, res) => {
  let embedQuerString = req.body.embedQuerString;
  const dashboardServerApiUrl = req.body.dashboardServerApiUrl;

  embedQuerString += "&embed_user_email=" + userEmail;
  embedQuerString += "&embed_server_timestamp=" + Math.round(Date.now() / 1000);
  const embedSignature = "&embed_signature=" + getSignatureUrl(embedQuerString, embedSecret);
  const embedDetailsUrl = "/embed/authorize?" + embedQuerString + embedSignature;

  const serverProtocol = url.parse(dashboardServerApiUrl).protocol === 'https:' ? https : http;

  serverProtocol.get(dashboardServerApiUrl + embedDetailsUrl, function (response) {
    let str = '';
    response.on('data', chunk => str += chunk);
    response.on('end', () => res.send(str));
  });
});

router.get('/getdetails', (req, res) => {
  const config = {
    DashboardId: appconfig.DashboardId,
    ServerUrl: appconfig.ServerUrl,
    SiteIdentifier: appconfig.SiteIdentifier,
    EmbedType: appconfig.EmbedType,
    Environment: appconfig.Environment
  };
  res.send(config);
});

module.exports = router;

In the renderDashboard() function (inside index.html), call the backend authorization route to authenticate and embed the dashboard:

function renderDashboard(dashboardId) {
  var dashboard = BoldBI.create({
    serverUrl: ServerUrl + "/" + SiteIdentifier,
    dashboardId: dashboardId,
    embedContainerId: "dashboard",
    embedType: BoldBI.EmbedType.Component,
    mode: BoldBI.Mode.View,
    expirationTime: 100000,
    environment: Environment,
    authorizationServer: {
      url: 'http://localhost:8080/api/authorizationserver'
    }
  });
  dashboard.loadDashboard();
}

Now, run the backend server using node app.js and execute the Flutter web app using the command:
```
flutter run -d chrome
```
