Bold BI Dashboards Embedding in ASP.NET MVC Sample with Embedded SDK

A GitHub link has been provided to get the sample application, which demonstrates the rendering of a single dashboard and a list of dashboards in your Bold BI server. This is followed by steps to create a new embedding application in ASP.NET MVC on your own.

NOTE: The best way to get started would be to read the Getting Started section of the documentation first. The Getting Started guide provides you with enough information that you need to know before working on the sample.

Prerequisites

How to run the sample

Please get the ASP.NET MVC sample from GitHub.
Please make sure that you have enabled embed authentication on the embed settings settings page. If it is not currently enabled, please refer to the provided image or detailed instructions to enable it.
To download the embedConfig.json file, please click on the following link for reference. Additionally, you can refer to the image below for visual guidance.

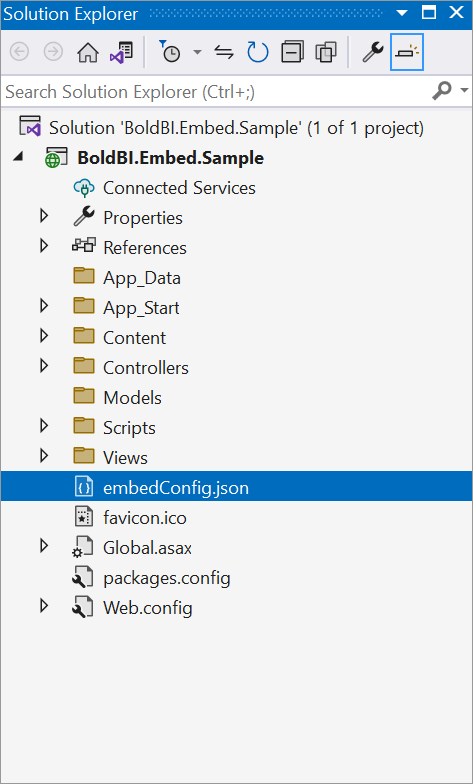

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Make sure you have placed it in the application, as shown in the image below.

EmbedConfig image

ServerUrl	Dashboard Server BI URL (ex: http://localhost:5000/bi, https://demo.boldbi.com/bi)
SiteIdentifier	For Bold BI Enterprise edition, it should be like site/site1. For Bold BI Cloud, it should be an empty string.
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboards list.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
Environment	Your Bold BI application environment. (If it is cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your own server, use `BoldBI.Environment.Enterprise`)
DashboardId	Item id of the dashboard to be embedded in your application.
ExpirationTime	Token expiration time. (In the EmbedConfig.json file, the default token expiration time is 10000 seconds)

Please run your ASP.NET MVC sample in Visual Studio.

NOTE: If you encounter an error with bin\roslyn\csc.ex, it means that you need to perform a clean clean build and rebuild.

NOTE: By default, we display the dashboard embedding without the dashboard listing sidebar. To access the dashboard list, you need to navigate to the dashboardlisting URL (e.g., http://localhost:44382/home/dashboardlisting).

How this sample works

Single Dashboard Embedding

In HomeController.cs, the Index() method reads values from embedConfig.json and stores them in the server-side model. These values are then assigned to JavaScript variables in Index.cshtml for front-end use. The tokenGenerationUrl is configured to call the TokenGeneration action for authentication.

public ActionResult Index()
{
   string basePath = AppDomain.CurrentDomain.BaseDirectory;
   string jsonString = System.IO.File.ReadAllText(Path.Combine(basePath, "embedConfig.json"));
   GlobalAppSettings.EmbedDetails = JsonConvert.DeserializeObject<EmbedDetails>(jsonString);
   return View();
}

<html>
   <head>
      <link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Roboto:400,700" />
      <link rel="stylesheet" href="~/Content/Site.css" />
      <script type="text/javascript" src="https://cdn.boldbi.com/embedded-sdk/latest/boldbi-embed.js"></script>
      <script type="text/javascript" src="~/Scripts/Embed/Index.js"></script>
      <script type="text/javascript">
         var rootUrl = "@GlobalAppSettings.EmbedDetails.ServerUrl";
         var dashboardId = "@GlobalAppSettings.EmbedDetails.DashboardId";
         var siteIdentifier = "@GlobalAppSettings.EmbedDetails.SiteIdentifier";
         var environment = "@GlobalAppSettings.EmbedDetails.Environment";
         var embedType = "@GlobalAppSettings.EmbedDetails.EmbedType";
         var tokenGenerationUrl = "@Url.Action("TokenGeneration", "Home")";
      </script>
   </head>
   <body onload="renderDashboard(dashboardId)">
      <div id="viewer-section" style="width: 100%";>
         <div id="dashboard"></div>
      </div>
   </body>
</html>

To generate an access token, call the TokenGeneration API with the provided embedConfig values.

  [HttpPost]
  [Route("TokenGeneration")]
  public string TokenGeneration()
  {
     var embedDetails = new
     {
           email = GlobalAppSettings.EmbedDetails.UserEmail,
           serverurl = GlobalAppSettings.EmbedDetails.ServerUrl,
           siteidentifier = GlobalAppSettings.EmbedDetails.SiteIdentifier,
           embedsecret = GlobalAppSettings.EmbedDetails.EmbedSecret,
           dashboard = new  // Dashboard ID property is mandatory only when using BoldBI version 14.1.11.
           {
              id = GlobalAppSettings.EmbedDetails.DashboardId
           }
     };

     //Post call to Bold BI server
     var client = new HttpClient();
     var requestUrl = $"{embedDetails.serverurl}/api/{embedDetails.siteidentifier}/embed/authorize";

     var jsonPayload = JsonConvert.SerializeObject(embedDetails);
     var httpContent = new StringContent(jsonPayload, Encoding.UTF8, "application/json");

     var result = client.PostAsync(requestUrl, httpContent).Result;
     var resultContent = result.Content.ReadAsStringAsync().Result;

     return JsonConvert.DeserializeObject<dynamic>(resultContent).Data.access_token;
  }

Once the token is generated, it will be returned to the index.js file and the dashboard will start to render it.

function getEmbedToken() {
   return fetch(tokenGenerationUrl, {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify({})
   })
   .then(response => {
      if (!response.ok) throw new Error("Token fetch failed");
      return response.text();
   });
}

function renderDashboard(dashboardId) {
   getEmbedToken()
      .then(accessToken => {
            const dashboard = BoldBI.create({
               serverUrl: rootUrl + "/" + siteIdentifier,
               dashboardId: dashboardId,
               embedContainerId: "dashboard",
               embedToken: accessToken
            });

            dashboard.loadDashboard();
      })
      .catch(err => {
            console.error("Error rendering dashboard:", err);
      });
};

Dashboard Listing

The DashboardListing action in HomeController.cs retrieves the necessary properties from embedConfig, deserializes them into GlobalAppSettings.EmbedDetails, and passes them to the view.

[HttpGet]
[Route("DashboardListing")]
public ActionResult DashboardListing()
{
   string basePath = AppDomain.CurrentDomain.BaseDirectory;
   string jsonString = System.IO.File.ReadAllText(Path.Combine(basePath, "embedConfig.json"));
   GlobalAppSettings.EmbedDetails = JsonConvert.DeserializeObject<EmbedDetails>(jsonString);
   return View();
}

  <!DOCTYPE html>
     <html>
     <head>
        <link rel="stylesheet" href="~/Content/Site.css" />
        <script type="text/javascript" src="https://cdn.boldbi.com/embedded-sdk/latest/boldbi-embed.js"></script>
        <script type="text/javascript" src="~/Scripts/Embed/Index.js"></script>
        <script type="text/javascript">
           var rootUrl = "@GlobalAppSettings.EmbedDetails.ServerUrl";
           var dashboardId = "@GlobalAppSettings.EmbedDetails.DashboardId";
           var siteIdentifier = "@GlobalAppSettings.EmbedDetails.SiteIdentifier";
           var environment = "@GlobalAppSettings.EmbedDetails.Environment";
           var embedType = "@GlobalAppSettings.EmbedDetails.EmbedType";
           var getDashboardsUrl = "@Url.Action("GetDashboards", "Home")";
           var tokenGenerationUrl = "@Url.Action("TokenGeneration", "Home")";
        </script>
     </head>

     <body onload="Init()">
        <div id="container">
           <div class="header-section">
                 <div id="grid-title">All Dashboards</div>
           </div>
           <div id="panel">
           </div>
        </div>
        <div id="viewer-section">
           <div id="dashboard"></div>
        </div>
     </body>
  </html>

When the page loads, the Init() function triggers an AJAX request to the getDashboardsUrl endpoint, where the GetDashboards() method in HomeController.cs retrieves an authentication token using GetToken() and fetches the list of available dashboards from the Bold BI server.

function Init() {
   var http = new XMLHttpRequest();
   http.open("GET", getDashboardsUrl, true);
   http.responseType = 'json';
   http.setRequestHeader("Content-type", "application/json");
   http.onreadystatechange = function () {
       if (http.readyState == 4 && http.status == 200) {
           ListDashboards.call(this, typeof http.response == "object" ? http.response : JSON.parse(http.response));
       }
       else if (http.readyState == 4 && http.status == 404) {
           console.log("Server not found");
       }
       else if (http.readyState == 4) {
           console.log(http.statusText);
       }
   };
   http.send();
};

[HttpGet]
[Route("dashboards/get")]
public string GetDashboards()
{
   var token = GetToken();

   using (var client = new HttpClient())
   {
         client.BaseAddress = new Uri(GlobalAppSettings.EmbedDetails.ServerUrl);
         client.DefaultRequestHeaders.Accept.Clear();
         client.DefaultRequestHeaders.Add("Authorization", token.TokenType + " " + token.AccessToken);
         var result = client.GetAsync(GlobalAppSettings.EmbedDetails.ServerUrl + "/api/" + GlobalAppSettings.EmbedDetails.SiteIdentifier + "/v2.0/items?ItemType=2").Result;
         string resultContent = result.Content.ReadAsStringAsync().Result;
         return resultContent;
   }
}

public Token GetToken()
{
   using (var client = new HttpClient())
   {
         System.Net.ServicePointManager.SecurityProtocol = System.Net.SecurityProtocolType.Tls | System.Net.SecurityProtocolType.Tls11 | System.Net.SecurityProtocolType.Tls12;
         client.BaseAddress = new Uri(GlobalAppSettings.EmbedDetails.ServerUrl);
         client.DefaultRequestHeaders.Accept.Clear();

         var content = new FormUrlEncodedContent(new[]
         {
            new KeyValuePair<string, string>("Username", GlobalAppSettings.EmbedDetails.UserEmail),
            new KeyValuePair<string, string>("grant_type", "embed_secret"),
            new KeyValuePair<string, string>("embed_secret", GlobalAppSettings.EmbedDetails.EmbedSecret)
         });
         var result = client.PostAsync(GlobalAppSettings.EmbedDetails.ServerUrl + "/api/" + GlobalAppSettings.EmbedDetails.SiteIdentifier + "/token", content).Result;
         string resultContent = result.Content.ReadAsStringAsync().Result;
         var response = JsonConvert.DeserializeObject<Token>(resultContent);
         return response;
   }
}

Once the dashboards are retrieved, the ListDashboards() function is called with the fetched data. This function automatically loads the first dashboard from the list by calling renderDashboard(data[0].Id).

function ListDashboards(data) {
  if (typeof (data) != "undefined" && data != null) {
     renderDashboard(data[0].Id);
     data.forEach(function (element) {
           var divTag = document.createElement("div");
           divTag.innerHTML = element.Name;
           divTag.className = "dashboard-item";
           divTag.setAttribute("onclick", "renderDashboard('" + element.Id + "')");
           divTag.setAttribute("name", element.Name);
           divTag.setAttribute("itemid", element.Id);
           divTag.setAttribute("version", element.Version);
           divTag.setAttribute("ispublic", element.IsPublic);
           document.getElementById("panel").appendChild(divTag);
     });
  }
}

function getEmbedToken() {
     return fetch(tokenGenerationUrl, {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({})
     })
     .then(response => {
        if (!response.ok) throw new Error("Token fetch failed");
        return response.text();
     });
  }

  function renderDashboard(dashboardId) {
     getEmbedToken()
        .then(accessToken => {
              const dashboard = BoldBI.create({
                 serverUrl: rootUrl + "/" + siteIdentifier,
                 dashboardId: dashboardId,
                 embedContainerId: "dashboard",
                 embedToken: accessToken
              });

              dashboard.loadDashboard();
        })
        .catch(err => {
              console.error("Error rendering dashboard:", err);
        });
  };

To generate an access token, call the TokenGeneration API with the provided embedConfig values.

  [HttpPost]
  [Route("TokenGeneration")]
  public string TokenGeneration()
  {
     var embedDetails = new
     {
           email = GlobalAppSettings.EmbedDetails.UserEmail,
           serverurl = GlobalAppSettings.EmbedDetails.ServerUrl,
           siteidentifier = GlobalAppSettings.EmbedDetails.SiteIdentifier,
           embedsecret = GlobalAppSettings.EmbedDetails.EmbedSecret,
           dashboard = new  // Dashboard ID property is mandatory only when using BoldBI version 14.1.11.
           {
              id = GlobalAppSettings.EmbedDetails.DashboardId
           }
     };

     //Post call to Bold BI server
     var client = new HttpClient();
     var requestUrl = $"{embedDetails.serverurl}/api/{embedDetails.siteidentifier}/embed/authorize";

     var jsonPayload = JsonConvert.SerializeObject(embedDetails);
     var httpContent = new StringContent(jsonPayload, Encoding.UTF8, "application/json");

     var result = client.PostAsync(requestUrl, httpContent).Result;
     var resultContent = result.Content.ReadAsStringAsync().Result;

     return JsonConvert.DeserializeObject<dynamic>(resultContent).Data.access_token;
  }

Once the token is generated, it will be returned to the index.js file and the dashboard will start to render it.

Steps to create new ASP.NET MVC application to embed dashboard

To begin, open Visual Studio and select Create new project.

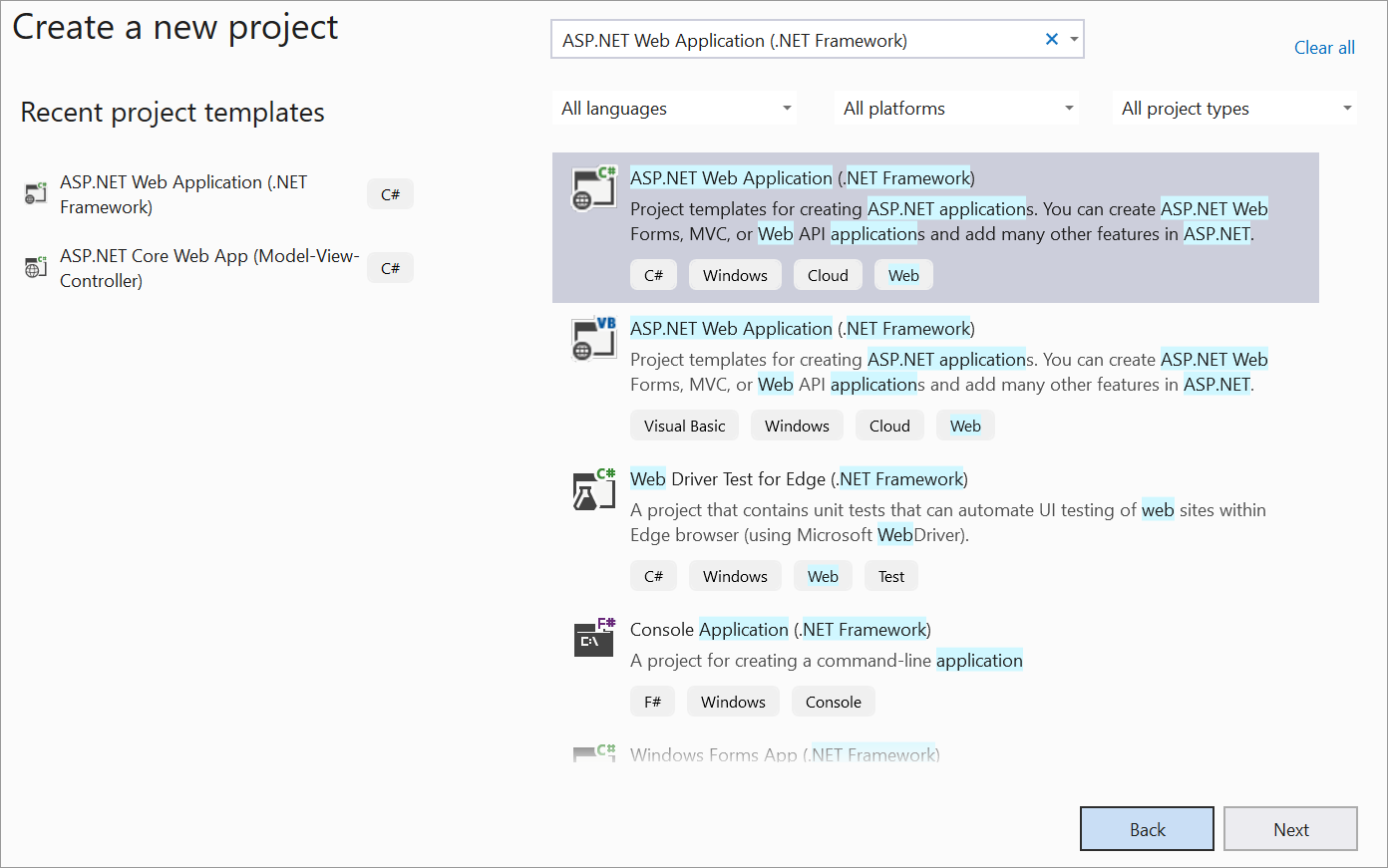

Next, choose ASP.NET Web Application (.NET Framework) and click Next.
Please feel free to change the project name as desired, and then click on the Create button.

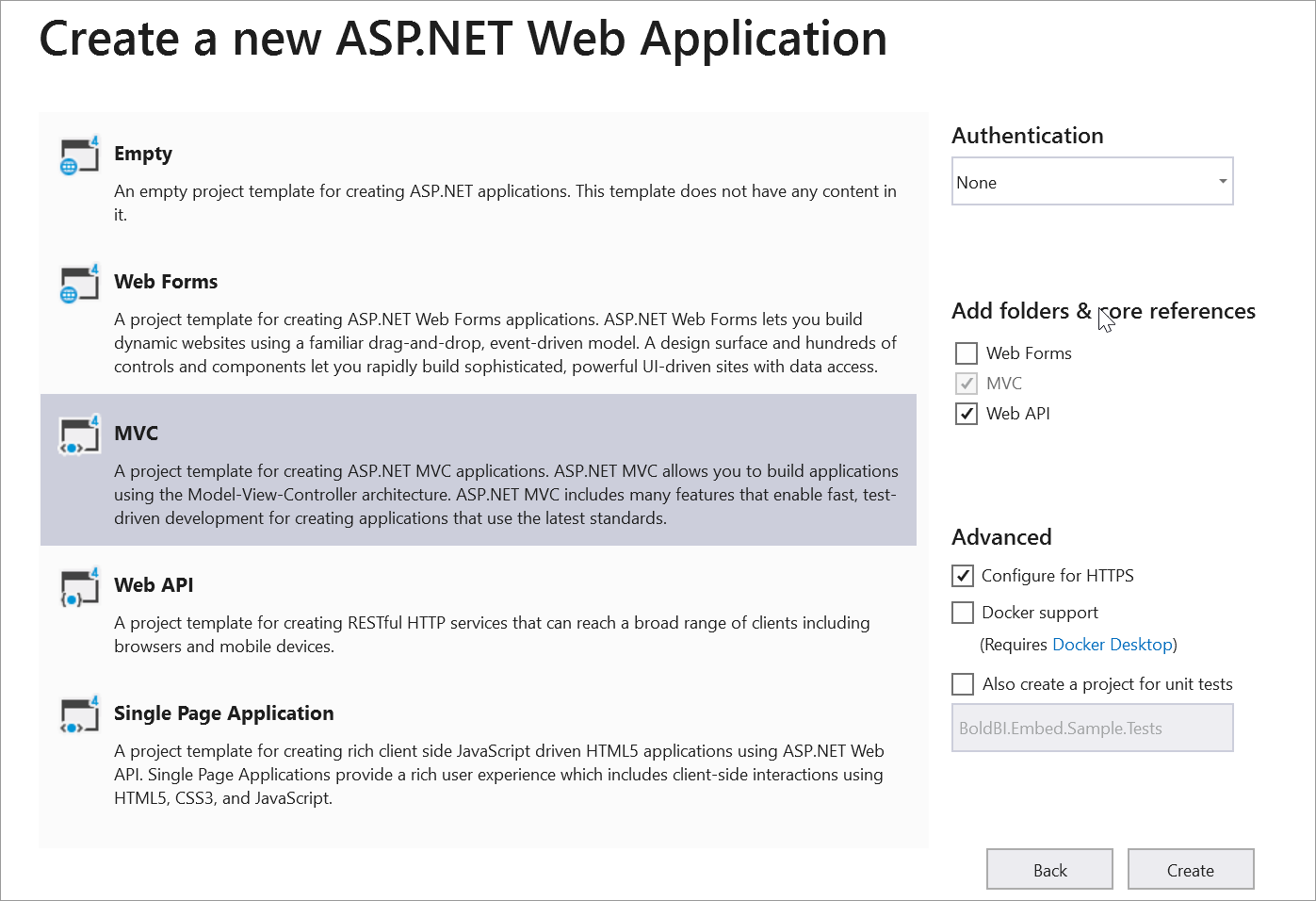

Please select MVC and Web API, and then click OK.
Please make sure that you have enabled embed authentication on the embed embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please click on the following link for reference. Additionally, you can refer to the accompanying image for visual guidance.
Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please make sure you have placed it in the application, as shown in the image below.

Please create another model class named DataClass.cs to define the following properties. These properties will be used to retrieve the dashboard details from the server. Please make sure to include the using Newtonsoft.Json; namespace in the DataClass.cs model file.

   public class Token
   {
      [JsonProperty("access_token")]
      public string AccessToken { get; set; }

      [JsonProperty("token_type")]
      public string TokenType { get; set; }

      [JsonProperty("expires_in")]
      public string ExpiresIn { get; set; }

      [JsonProperty("email")]
      public string Email { get; set; }

      [JsonProperty(".issued")]
      public string Issued { get; set; }

      [JsonProperty(".expires")]
      public string Expires { get; set; }
   }

   public class EmbedDetails
   {
      public string Environment { get; set; }

      public string SiteIdentifier { get; set; }

      public string ServerUrl { get; set; }

      public string EmbedSecret { get; set; }

      public string UserEmail { get; set; }

      public string EmbedType { get; set; }

      public string DashboardId { get; set; }
   }

Please create another model class called GlobalAppSettings.cs. This class will define the following properties that will maintain the embedConfig.json file object within the GlobalAppSettings. Make sure to include the static static BoldBI.Embed.Sample.Models.DataClass namespace in the GlobalAppSettings.cs model file.
```
   public class GlobalAppSettings
   {
      public static EmbedDetails EmbedDetails { get; set; }
   }
```

The following script is necessary to display the dashboard. Set Layout = null at the top and replace the code below in the <head> tag of your page. Ensure that the Models folder is included in the namespaces.

Single Dashboard Embedding

<head>
<link rel="stylesheet" href="~/Content/Site.css" />
 <script type="text/javascript" src="https://cdn.boldbi.com/embedded-sdk/v15.2.6/boldbi-embed.js"></script>
 <script type="text/javascript" src="~/Scripts/Embed/Index.js"></script>
 <script type="text/javascript">
    var rootUrl = "@GlobalAppSettings.EmbedDetails.ServerUrl";
    var dashboardId = "@GlobalAppSettings.EmbedDetails.DashboardId";
    var siteIdentifier = "@GlobalAppSettings.EmbedDetails.SiteIdentifier";
    var environment = "@GlobalAppSettings.EmbedDetails.Environment";
    var embedType = "@GlobalAppSettings.EmbedDetails.EmbedType";
    var authorizationServerUrl = "@Url.Action("AuthorizationServer", "Home")";
 </script>
</head>

In the <body> section, include the <div id="viewer-section"> with a <div id="dashboard"> inside it. This container can be used to display the dashboard.

<body onload="renderDashboard(dashboardId)">
   <div id="viewer-section">
      <div id="dashboard"></div>
   </div>
</body>

Dashboard Listing

To embed a dashboard in dashboard listing page, create a new Razor view named DashboardListing.cshtml and set Layout = null at the top of the file. Replace the <head> section of your page with the following code, ensuring that the Models folder is included in the namespaces.

 <head>
    <script type="text/javascript" src="https://cdn.boldbi.com/embedded-sdk/latest/boldbi-embed.js"></script>
    <link rel="stylesheet" href="~/Content/Site.css" />
    <script type="text/javascript" src="~/Scripts/Embed/Index.js"></script>
    <script type="text/javascript">
          var rootUrl = "@GlobalAppSettings.EmbedDetails.ServerUrl";
          var dashboardId = "@GlobalAppSettings.EmbedDetails.DashboardId";
          var siteIdentifier = "@GlobalAppSettings.EmbedDetails.SiteIdentifier";
          var environment = "@GlobalAppSettings.EmbedDetails.Environment";
          var embedType = "@GlobalAppSettings.EmbedDetails.EmbedType";
          var authorizationServerUrl = "@Url.Action("AuthorizationServer", "Home")";
          var getDashboardsUrl = "@Url.Action("GetDashboards", "Home")";
    </script>
 </head>

In the <body> section, include a container to display the list of dashboards and a <div id="viewer-section"> with a nested <div id="dashboard">. This section will be used to display the selected dashboard.

<body onload="Init()">
   <div id="container">
      <div class="header-section">
            <div id="grid-title">All Dashboards</div>
      </div>
      <div id="panel">
      </div>
   </div>
   <div id="viewer-section">
      <div id="dashboard"></div>
   </div>
</body>

To style the Dashboard Listing page correctly, add the following CSS rules to your Site.css file.

 ul {
    list-style-type: none;
    padding-left: 0;
 }

 .tab {
    padding-top: 2px;
    padding-bottom: 18px;
    cursor: pointer
 }

 .active {
    background-color: burlywood;
 }

 #container {
    width: 13%;
    float: left;
    height: 100%;
    float: left;
    background: #f4f4f4;
    height: 100%;
    box-shadow: 2px 0 4px 0 rgba(0, 0, 0, .12);
    overflow: auto;
    overflow-x: hidden;
 }

 #grid-title {
    font-size: 17px;
    border-bottom: 1px solid #333;
    padding: 15px;
 }

 #panel {
    width: 100%;
    float: left;
    background: #f4f4f4;
    overflow: auto;
 }

 #dashboard {
    width: 100%;
    float: left;
    height: 100%;
    display: block;
 }

 .dashboard-item {
    padding: 10px;
    border-bottom: 1px solid #ccc;
    cursor: pointer;
 }

 #viewer-section {
    width: 87%;
    height: 100%;
    float: left;
 }

 #viewer-header {
    padding: 10px;
    display: block;
    float: left;
    width: 100%;
 }

 #create-dashboard {
    float: right;
    margin-right: 20px;
    background: #0565ff;
    border: 0;
    border-radius: 4px;
    color: #fff;
    cursor: pointer;
    display: inline-block;
    font-size: 12px;
    font-weight: 600;
    height: 28px;
    line-height: 28px;
    min-width: 90px;
    outline: none;
    text-align: center;
    border: 1px solid #0450cc;
 }

Please create a new folder called Controllers. Then, create a new file called HomeController.cs within the Controllers folder. To obtain specific dashboard details in the Controllers\HomeController.cs, an API method called AuthorizationServer() needs to be defined. This API will utilize the GetSignatureUrl() method to generate the algorithm. The parameters embedQueryString, userEmail, and the value from the GetSignatureUrl() method should be added as query parameters in the URL to fetch the desired dashboard details. Please ensure that the Newtonsoft.Json and System.Security.Cryptography namespaces are included.

public ActionResult Index()
{
   string basePath = AppDomain.CurrentDomain.BaseDirectory;
   string jsonString = System.IO.File.ReadAllText(Path.Combine(basePath, "embedConfig.json"));
   GlobalAppSettings.EmbedDetails = JsonConvert.DeserializeObject<EmbedDetails>(jsonString);
   // Pass specific properties to the view using ViewBag
   ViewBag.DashboardId = GlobalAppSettings.EmbedDetails.DashboardId;
   ViewBag.ServerUrl = GlobalAppSettings.EmbedDetails.ServerUrl;
   ViewBag.EmbedType = GlobalAppSettings.EmbedDetails.EmbedType;
   ViewBag.Environment = GlobalAppSettings.EmbedDetails.Environment;
   ViewBag.SiteIdentifier = GlobalAppSettings.EmbedDetails.SiteIdentifier;
   return View();
}
[System.Web.Http.HttpPost]
[System.Web.Http.Route("AuthorizationServer")]
public ActionResult AuthorizationServer(string embedQuerString, string dashboardServerApiUrl)
{
   embedQuerString += "&embed_user_email=" + GlobalAppSettings.EmbedDetails.UserEmail;
   var embedDetailsUrl = "/embed/authorize?" + embedQuerString.ToLower() + "&embed_signature=" + GetSignatureUrl(embedQuerString.ToLower());
   using (var client = new HttpClient())
   {
      client.BaseAddress = new Uri(dashboardServerApiUrl);
      client.DefaultRequestHeaders.Accept.Clear();
      var result = client.GetAsync(dashboardServerApiUrl + embedDetailsUrl).Result;
      string resultContent = result.Content.ReadAsStringAsync().Result;
      return Json(resultContent);
   }
}
public string GetSignatureUrl(string message)
{
   var encoding = new System.Text.UTF8Encoding();
   var keyBytes = encoding.GetBytes(GlobalAppSettings.EmbedDetails.EmbedSecret);
   var messageBytes = encoding.GetBytes(message);
   using (var hmacsha1 = new HMACSHA256(keyBytes))
   {
      var hashMessage = hmacsha1.ComputeHash(messageBytes);
      return Convert.ToBase64String(hashMessage);
   }
}

Additionally, include the GetDashboards() and GetToken() functions to retrieve the list of dashboards and display the dashboard listing page.

[HttpGet]
[Route("DashboardListing")]
public ActionResult DashboardListing()
{
   return View();
}

[HttpGet]
[Route("dashboards/get")]
public string GetDashboards()
{
 var token = GetToken();
 using (var client = new HttpClient())
 {
    client.BaseAddress = new Uri(GlobalAppSettings.EmbedDetails.ServerUrl);
    client.DefaultRequestHeaders.Accept.Clear();
    client.DefaultRequestHeaders.Add("Authorization", token.TokenType + " " + token.AccessToken);
    var result = client.GetAsync(GlobalAppSettings.EmbedDetails.ServerUrl + "/api/" + GlobalAppSettings.EmbedDetails.SiteIdentifier + "/v2.0/items?ItemType=2").Result;
    string resultContent = result.Content.ReadAsStringAsync().Result;
    return resultContent;
 }
}
public Token GetToken()
{
   using (var client = new HttpClient())
   {
    System.Net.ServicePointManager.SecurityProtocol = System.Net.SecurityProtocolType.Tls | System.Net.SecurityProtocolType.Tls11 | System.Net.SecurityProtocolType.Tls12;
    client.BaseAddress = new Uri(GlobalAppSettings.EmbedDetails.ServerUrl);
    client.DefaultRequestHeaders.Accept.Clear();
    var content = new FormUrlEncodedContent(new[]
    {
       new KeyValuePair<string, string>("Username", GlobalAppSettings.EmbedDetails.UserEmail),
       new KeyValuePair<string, string>("grant_type", "embed_secret"),
       new KeyValuePair<string, string>("embed_secret", GlobalAppSettings.EmbedDetails.EmbedSecret)
    });
    var result = client.PostAsync(GlobalAppSettings.EmbedDetails.ServerUrl + "/api/" + GlobalAppSettings.EmbedDetails.SiteIdentifier + "/token", content).Result;
    string resultContent = result.Content.ReadAsStringAsync().Result;
    var response = JsonConvert.DeserializeObject<Token>(resultContent);
    return response;
   }
}

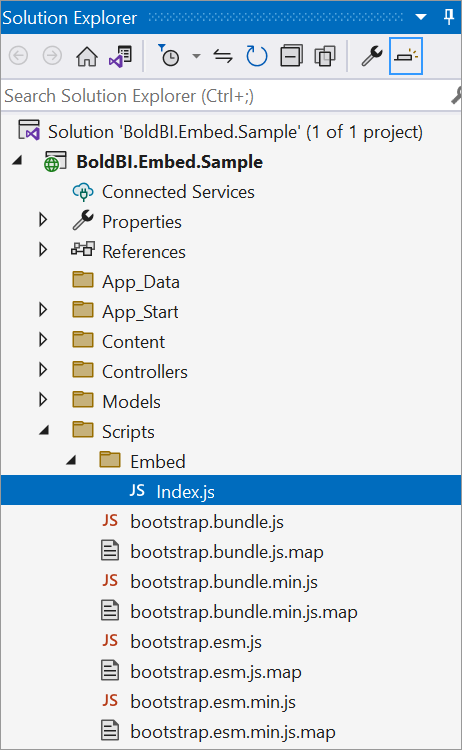

Open the Scripts folder. Inside the Scripts folder, create a new folder called Embed. Within the Embed folder, create a new file named Index.js. Define the renderDashboard() method, which creates an instance and calls the loadDashboard() method to render the dashboard. The renderDashboard() method is responsible for rendering the dashboard using the Embed SDK file.

Index.cshtml location

function renderDashboard(dashboardId) {
   var dashboard = BoldBI.create({
      serverUrl: rootUrl + "/" + siteIdentifier, // Dashboard Server BI URL (e.g., http://localhost:5000/bi/site/site1, http://demo.boldbi.com/bi/site/site1)
      dashboardId: dashboardId, // Provide the dashboard ID of the dashboard you want to embed here.
      embedContainerId: "dashboard", // DOM ID where the dashboard will be rendered; here it is "dashboard".
      environment: environment, // If Cloud, you should use BoldBI.Environment.Cloud
      mode: BoldBI.Mode.View, // Rendering mode of the dashboard; it can be either Design or View.
      expirationTime: 100000, // Set the duration for which the token will be valid.
      authorizationServer: {
         url: authorizationServerUrl // URL from which the specific dashboard details are obtained from the server.
      }
   });
   dashboard.loadDashboard();
}

For dashboard listing, additionally include the following scripts in the Index.js file:

function Init() {
   var http = new XMLHttpRequest();
   http.open("GET", getDashboardsUrl, true);
   http.responseType = 'json';
   http.setRequestHeader("Content-type", "application/json");
   http.onreadystatechange = function () {
      if (http.readyState == 4 && http.status == 200) {
            ListDashboards.call(this, typeof http.response == "object" ? http.response : JSON.parse(http.response));
      } else if (http.readyState == 4 && http.status == 404) {
            console.log("Server not found");
      } else if (http.readyState == 4) {
            console.log(http.statusText);
      }
   };
   http.send();
}

function ListDashboards(data) {
   if (typeof data !== "undefined" && data !== null) {
      renderDashboard(data[0].Id);
      data.forEach(function (element) {
        var divTag = document.createElement("div");
        divTag.innerHTML = element.Name;
        divTag.className = "dashboard-item";
        divTag.setAttribute("onclick", "renderDashboard('" + element.Id + "')");
        divTag.setAttribute("name", element.Name);
        divTag.setAttribute("itemid", element.Id);
        divTag.setAttribute("version", element.Version);
        divTag.setAttribute("ispublic", element.IsPublic);
        document.getElementById("panel").appendChild(divTag);
      });
   }
}

Please run your ASP.NET MVC sample in Visual Studio.
