Bold BI Dashboards embedding in Angular using Embedded SDK

A GitHub link has been provided to get the sample application, which demonstrates the rendering of the dashboard available on your Bold BI server. This is followed by steps to create your own embedding application in Angular.

NOTE: The best way to get started would be to read the Getting Started section of the documentation first. The Getting Started guide provides you with enough information that you need to know before working on the sample. To explore the Angular embedding sample in Bold BI v3.2.16, please refer to the Angular with ASP.NET Core for more details.

Prerequisites

NOTE: Node.js versions 18.18 to 20.15 are supported.

How to run the sample

Please get the Angular with ASP.NET Core sample from GitHub.
Please make sure you have activated embed authentication on the embed settings page. If it is not currently activated, please refer to the image or detailed instructions below to enable it.
To download the embedConfig.json file, please click on the following link for reference. Additionally, you can view the accompanying image for visual guidance.

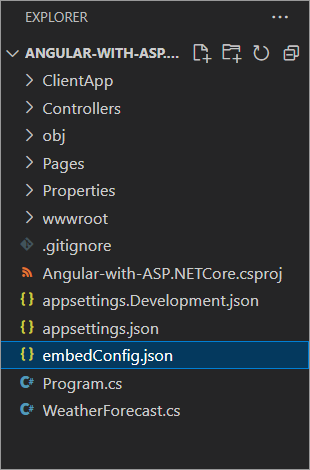

Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Please make sure to place it in the application as shown in the following image.

EmbedConfig image

ServerUrl	Dashboard Server BI URL (eg: http://localhost:5000/bi, https://demo.boldbi.com/bi)
SiteIdentifier	For the Bold BI Enterprise edition, it should be like site/site1. For Bold BI Cloud, it should be an empty string.
UserEmail	UserEmail of the Admin in your Bold BI, which would be used to get the dashboard list.
EmbedSecret	Get your EmbedSecret key from the Embed tab by enabling the `Enable embed authentication` in the Administration page
Environment	Your Bold BI application environment. (If it is a cloud analytics server, use `BoldBI.Environment.Cloud`; if it is your server, use `BoldBI.Environment.Enterprise`)
DashboardId	Item ID of the dashboard to be embedded in your application.
ExpirationTime	Token expiration time. (In the 'EmbedConfig.json' file, the default token expiration time is 10000 seconds)

In this scenario, the Angular application functions as a client, while the ASP.NET Core application functions as a server. This is because you must configure the properties in the app.component.ts file.
Open your Angular with ASP.NET Core project in Visual Studio Code and install all dependent packages by using the following command npm install.
Execute the command dotnet restore to restore the necessary packages. Once the packages have been restored, use the dotnet build command to build the project.
Run your Angular with ASP.NET Core sample by using the command dotnet run in Visual Studio Code.

How this sample works

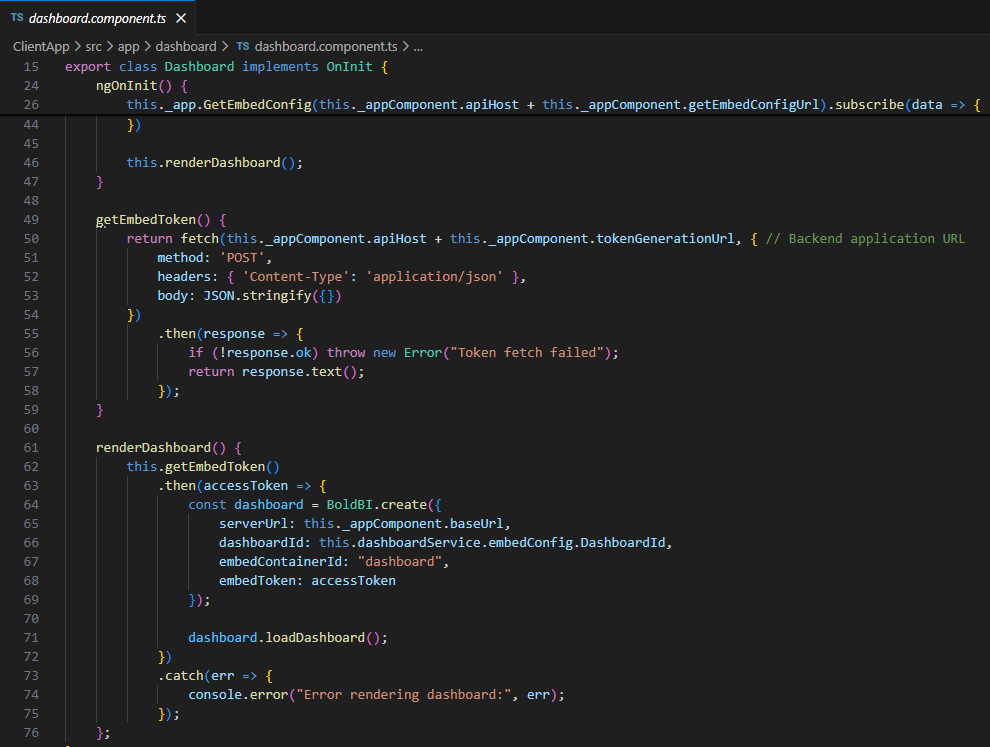

The renderDashboard method will be invoked from the ngOnInit() function based on the configured embedConfig values in the dashboard.component.ts file.

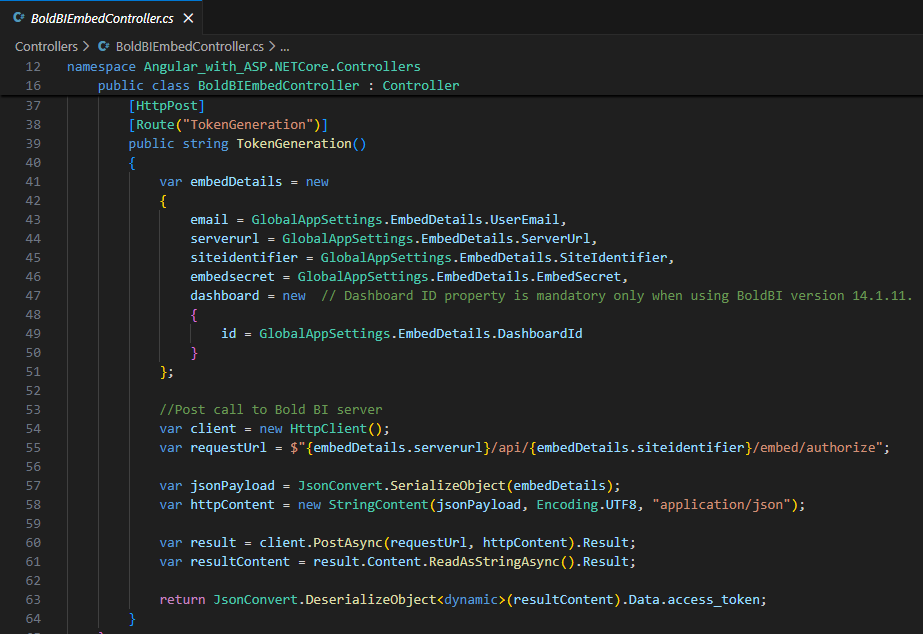

Before rendering, call the tokenGenerationUrl, which redirects to the TokenGeneration action in the BoldBIEmbedController. This action generates the access token using the provided embedDetails of the ASP.NET Core application.
Once the token is generated, it will be returned to the dashboard.component.ts file and the dashboard will start to render it.

Steps to create new Angular application to embed dashboard

Please create a folder in the desired location and open it in Visual Studio Code.

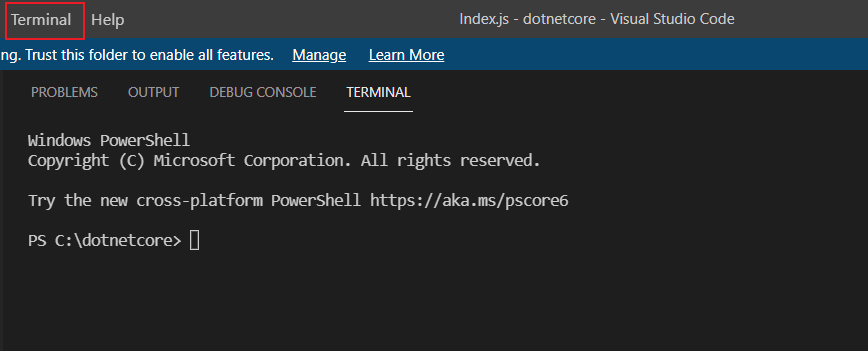

Please open the terminal in Visual Studio Code. Please refer to the following image.
To create a new project, execute this command in the terminal.
```
     dotnet new angular
```
Please ensure that you have enabled embed authentication on the embed settings page. If it is not currently enabled, please refer to the following image or detailed instructions to enable it.
To download the embedConfig.json file, please click on the provided link . Furthermore, you can also refer to the accompanying image for visual assistance.
Please copy the downloaded embedConfig.json file and paste it into the designated location within the application. Kindly make sure to place it in the application exactly as shown in the following image.

Create a new folder called Models. Create a model class as DataClass.cs to define the following properties. These properties are used to get the dashboard details from the server.

Execute the following commands in the terminal to add the necessary references to the project: dotnet add package Newtonsoft.Json and dotnet add package System.Runtime.Serialization.Primitives. Ensure the System.Runtime.Serialization and Newtonsoft.Json namespaces are in the DataClass.cs model file.

[DataContract]
public class EmbedClass
{
    [DataMember]
    public string embedQuerString { get; set; }
    [DataMember]
    public string dashboardServerApiUrl { get; set; }
}

public class TokenObject
{
    public string Message { get; set; }

    public string Status { get; set; }

    public string Token { get; set; }
}

public class Token
{
    [JsonProperty("access_token")]
    public string AccessToken {get;set;}

    [JsonProperty("token_type")]
    public string TokenType {get;set; }

    [JsonProperty("expires_in")]
    public string ExpiresIn {get; set;}

    [JsonProperty("email")]
    public string Email {get;set;}

    public string LoginResult {get;set;}

    public string LoginStatusInfo {get;set;}

    [JsonProperty(".issued")]
    public string Issued { get; set; }

    [JsonProperty(".expires")]
    public string Expires { get; set; }
}

public class EmbedDetails
{
    public string Environment { get; set; }

    public string SiteIdentifier { get; set; }

    public string ServerUrl { get; set; }

    public string EmbedSecret { get; set; }

    public string UserEmail { get; set; }

    public string EmbedType { get; set; }

    public string DashboardId { get; set; }
}

Create another model class as GlobalAppSettings.cs to define the following properties. These properties maintain the embedConfig.json file object within the GlobalAppSettings.
```
public class GlobalAppSettings
{
    public static EmbedDetails EmbedDetails { get; set; }
}
```

Create a new controller as BoldBIEmbedController.cs. In the Controllers\BoldBIEmbedController.cs, To get particular dashboard details, define the API GetDetails() which uses the GetSignatureUrl() method to generate the algorithm. In this API, embedQuerString,userEmail and the value from the GetSignatureUrl() method are appended as query parameters in the URL to get details of a particular dashboard.

   [ApiController]
   [Route("api/[controller]")]
   public class BoldBIEmbedController : Controller
   {
   [HttpGet]
   [Route("GetData")]
   public IActionResult GetData()
   {
       var jsonData = System.IO.File.ReadAllText("embedConfig.json");
       return Ok(jsonData);
   }

   [HttpGet]
   [Route("GetDashboards")]
   public string GetDashboards()
   {
       var token = GetToken();

       using (var client = new HttpClient())
       {
           client.BaseAddress = new Uri(GlobalAppSettings.EmbedDetails.ServerUrl);
           client.DefaultRequestHeaders.Accept.Clear();
           client.DefaultRequestHeaders.Add("Authorization", token.TokenType + " " + token.AccessToken);
           var result = client.GetAsync(GlobalAppSettings.EmbedDetails.ServerUrl + "/api/" + GlobalAppSettings.EmbedDetails.SiteIdentifier + "/v2.0/items?ItemType=2").Result;
           string resultContent = result.Content.ReadAsStringAsync().Result;
           return resultContent;
       }
   }

   public Token GetToken()
   {
       using (var client = new HttpClient())
       {
           client.BaseAddress = new Uri(GlobalAppSettings.EmbedDetails.ServerUrl);
           client.DefaultRequestHeaders.Accept.Clear();

           var content = new FormUrlEncodedContent(new[]
           {
               new KeyValuePair<string, string>("grant_type", "embed_secret"),
               new KeyValuePair<string, string>("Username", GlobalAppSettings.EmbedDetails.UserEmail),
               new KeyValuePair<string, string>("embed_secret", GlobalAppSettings.EmbedDetails.EmbedSecret)
           });
           var result = client.PostAsync(GlobalAppSettings.EmbedDetails.ServerUrl + "/api/" + GlobalAppSettings.EmbedDetails.SiteIdentifier + "/token", content).Result;
           string resultContent = result.Content.ReadAsStringAsync().Result;
           var response = JsonConvert.DeserializeObject<Token>(resultContent);
           return response;
       }
     }
   }

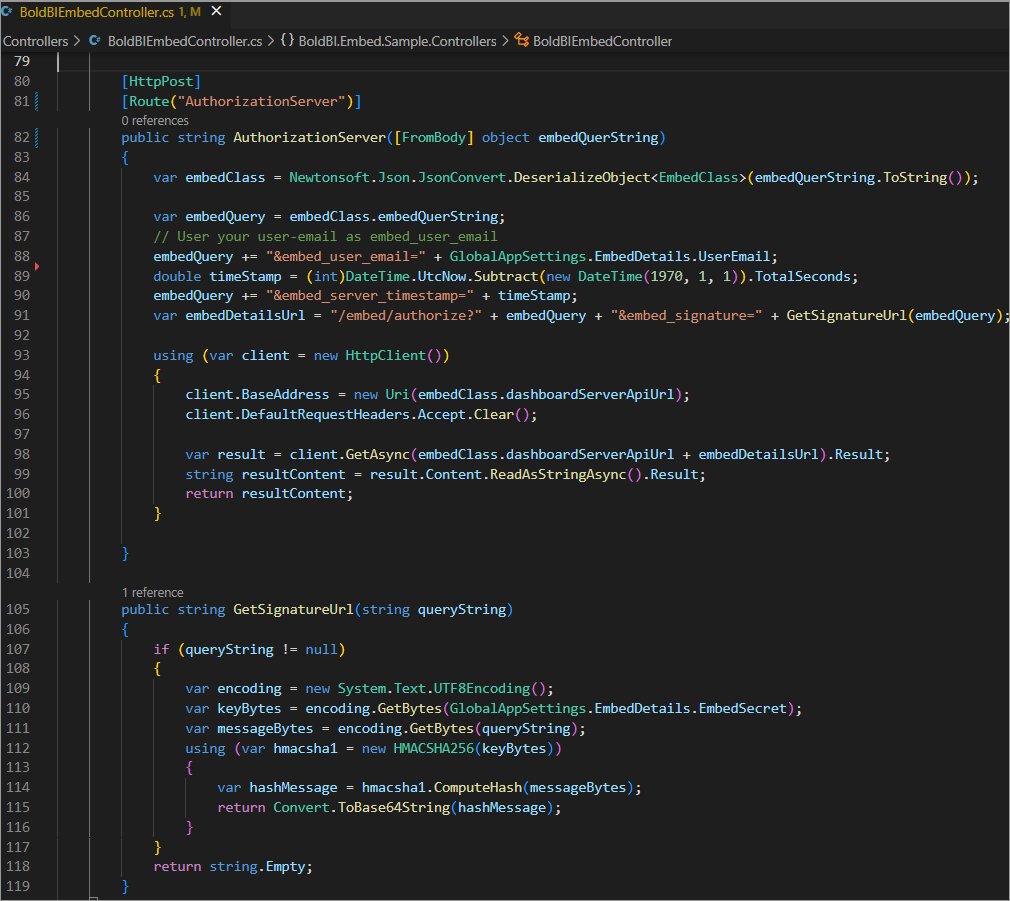

In the Controllers\BoldBIEmbedController.cs, To get particular dashboard details, define an API AuthorizationServer() which uses the method GetSignatureUrl() to generate the algorithm. In this API, the embedQuerString,userEmail and the value from the GetSignatureUrl() method are appended as query parameters in the URL to get details of a particular dashboard. With these details, the renderDashboard() method is called in the angular application.

EmbedConfig image


   [HttpPost]
   [Route("AuthorizationServer")]
   public string AuthorizationServer([FromBody] object embedQuerString)
   {
       var embedClass = Newtonsoft.Json.JsonConvert.DeserializeObject<EmbedClass>(embedQuerString.ToString());

       var embedQuery = embedClass.embedQuerString;
       // User your user-email as embed_user_email
       embedQuery += "&embed_user_email=" + GlobalAppSettings.EmbedDetails.UserEmail;
       //To set embed_server_timestamp to overcome the EmbedCodeValidation failing while different timezone using at client application.
       double timeStamp = (int)DateTime.UtcNow.Subtract(new DateTime(1970, 1, 1)).TotalSeconds;
       embedQuery += "&embed_server_timestamp=" + timeStamp;
       var embedDetailsUrl = "/embed/authorize?" + embedQuery + "&embed_signature=" + GetSignatureUrl(embedQuery);

       using (var client = new HttpClient())
       {
           client.BaseAddress = new Uri(embedClass.dashboardServerApiUrl);
           client.DefaultRequestHeaders.Accept.Clear();

           var result = client.GetAsync(embedClass.dashboardServerApiUrl + embedDetailsUrl).Result;
           string resultContent = result.Content.ReadAsStringAsync().Result;
           return resultContent;
       }

   }

   public string GetSignatureUrl(string queryString)
   {
       if (queryString != null)
       {
           var encoding = new System.Text.UTF8Encoding();
           var keyBytes = encoding.GetBytes(GlobalAppSettings.EmbedDetails.EmbedSecret);
           var messageBytes = encoding.GetBytes(queryString);
           using (var hmacsha1 = new HMACSHA256(keyBytes))
           {
               var hashMessage = hmacsha1.ComputeHash(messageBytes);
               return Convert.ToBase64String(hashMessage);
           }
       }
       return string.Empty;
   }

Open the Program.cs file and add the following code sample before app.UseHttpsRedirection(). To read the embedConfig.json file in order to utilize it in the controller. The existing MapControllerRoute pattern inside the controller name and action name changed as follows. Ensure the using using Newtonsoft.Json namespaces in the Program.cs file.

    app.UseCors(corsPolicyBuilder => corsPolicyBuilder
    .AllowAnyOrigin().AllowAnyMethod().AllowAnyHeader());

    string basePath = AppDomain.CurrentDomain.BaseDirectory;
    string jsonString = System.IO.File.ReadAllText(Path.Combine(basePath, "embedConfig.json"));
    GlobalAppSettings.EmbedDetails = JsonConvert.DeserializeObject<EmbedDetails>(jsonString);

    app.MapControllerRoute(
      name: "default",
      pattern: "{BoldBIEmbed}/{action=GetData}/{id?}");

Create a new file and name it package.json. It is essential to install the packages listed in the dependencies section below.

   {
      "name": "angular-sample",
      "version": "0.0.0",
      "scripts": {
         "ng": "ng",
         "start": "ng serve",
         "build": "ng build",
         "watch": "ng build --watch --configuration development",
         "test": "ng test"
       },
       "private": true,
       "dependencies": {
             "@boldbi/boldbi-embedded-sdk": "^6.4.6",
             "@angular/animations": "^14.0.0",
             "@angular/common": "^14.0.0",
             "@angular/compiler": "^14.0.0",
             "@angular/core": "^14.0.0",
             "@angular/forms": "^14.0.0",
             "@angular/platform-browser": "^14.0.0",
             "@angular/platform-browser-dynamic": "^14.0.0",
             "@angular/router": "^14.0.0",
             "rxjs": "~7.5.0",
             "tslib": "^2.3.0",
             "zone.js": "~0.11.4",
             "@angular-devkit/build-angular": "^14.0.0",
             "@angular/cli": "^14.0.6",
             "@angular/compiler-cli": "^14.0.0"
             }
       }

Open the folder ClientApp\src\app and create a dashboard-listing folder with a dashboard-listing.component.html and dashboard-listing.component.ts files in it. In the app.component.ts file replace the following code, define the mandatory properties, and invoke the ngOnInit() which is implemented in the dashboard-listing.component.ts method as follows.

  import { Component } from '@angular/core';
  import { appService } from './app.service';

  @Component({
      selector: 'app-root',
      templateUrl: './app.component.html',
  })

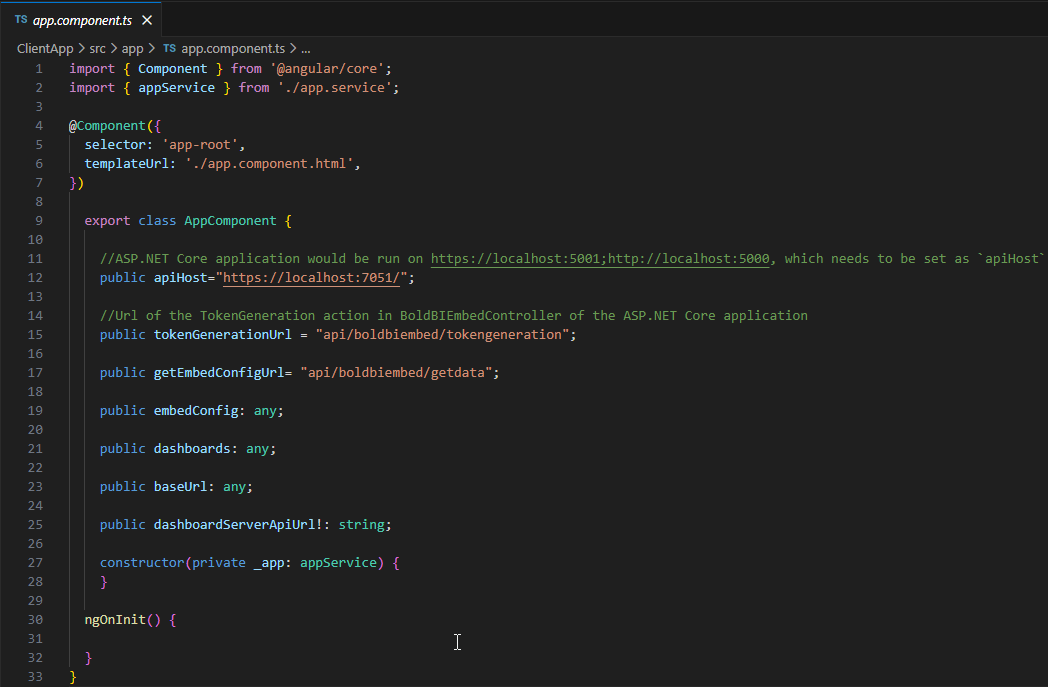

  export class AppComponent {

  //ASP.NET Core application would be run on https://localhost:7210;http://localhost:5279, which needs to be set as `apiHost`
  public apiHost = "https://localhost:7210/";

  //Url of the GetDetails action in ValuesController of the ASP.NET Core application
  public authorizationUrl = "api/boldbiembed/authorizationserver";

  //Url of the GetDashboards action in ValuesController of the ASP.NET Core application
  public getDashboardsUrl = "api/boldbiembed/getdashboards";
  public getEmbedConfigUrl = "api/boldbiembed/getdata";
  public embedConfig: any;
  public dashboards: any;
  public baseUrl: any;
  public dashboardServerApiUrl!: string;

  constructor(private _app: appService) {
  }
  ngOnInit() {

  }
  }

NOTE: Open the launchSettings.json file, applicationUrl is copied and pasted in apiHost.

In the dashboard-listing.component.html file, create the DOM element to render the dashboard and its list as follows.
```
   <div id="viewer-section">
       <div id="dashboard"></div>
   </div>
```

In the Index.html file, refer to the following cdn files in the <head> tag.

   <!doctype html>
       <html lang="en">
       <head>
         <meta charset="utf-8">
         <title>Embedded BI</title>
          <base href="/">
               <meta name="viewport" content="width=device-width, initial-scale=1">
               <link rel="icon" type="image/x-icon" href="favicon.ico">
               <link rel="stylesheet" href="./assets/css/site.css" />
       </head>
       <body><app-root></app-root></body>
   </html>

In the dashboard-listing.component.ts, you need to implement the ngOnInit() and renderDashboard() methods. In the ngOnInit() method, assign value for the baseUrl and dashboardServerApiUrl, which is used by the renderDashboard() method to render the dashboard. Invoke the getDashboard() with the token to get the dashboard details and dashboard list from server.

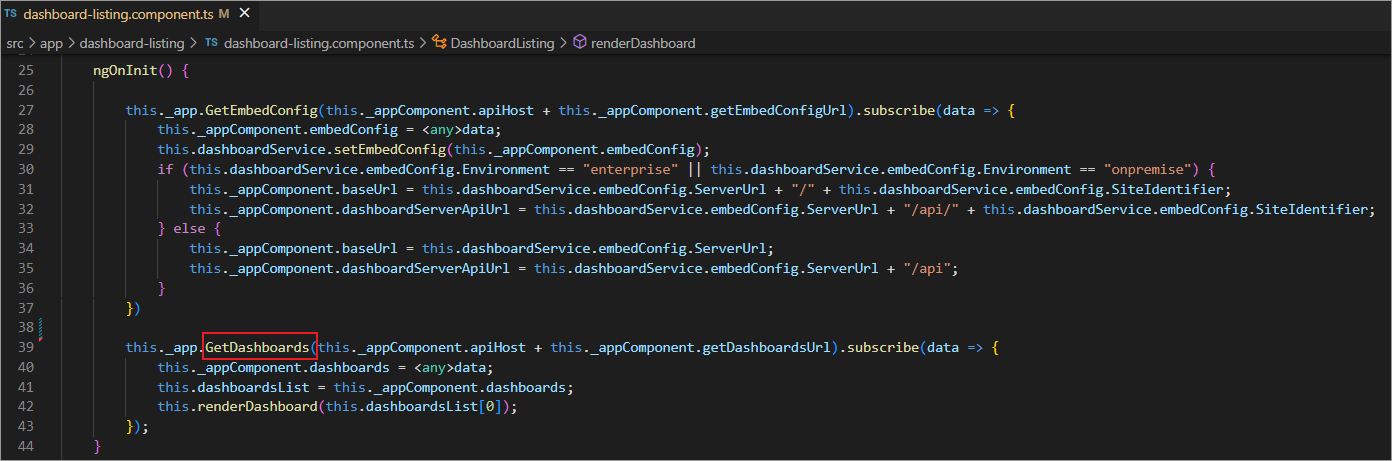

Get Dashboards

       import { Component, OnInit } from '@angular/core';
       import { Item } from '../app';
       import { appService } from '../app.service';
       import { AppComponent } from '../app.component';
       import { BoldBI } from '@boldbi/boldbi-embedded-sdk';
       import { DashboardService } from '../dashboard.service';

       @Component({
          selector: 'app-dashboard-listing',
          templateUrl: './dashboard-listing.component.html',
          providers: [appService]
       })

       export class DashboardListing implements OnInit {
       public dashboardsList!: Item[];
       result: any;
       dashboard: any;
       embedConfig: any;
       constructor(private _app: appService, private _appComponent: AppComponent, private dashboardService: DashboardService) {
       }

       ngOnInit() {
           this._app.GetEmbedConfig(this._appComponent.apiHost + this._appComponent.getEmbedConfigUrl).subscribe(data => {
               this._appComponent.embedConfig = <any>data;
               this.dashboardService.setEmbedConfig(this._appComponent.embedConfig);
               if (this.dashboardService.embedConfig.Environment == "enterprise" || this.dashboardService.embedConfig.Environment == "onpremise") {
               this._appComponent.baseUrl = this.dashboardService.embedConfig.ServerUrl + "/" + this.dashboardService.embedConfig.SiteIdentifier;
               this._appComponent.dashboardServerApiUrl = this.dashboardService.embedConfig.ServerUrl + "/api/" + this.dashboardService.embedConfig.SiteIdentifier;
           } else {
               this._appComponent.baseUrl = this.dashboardService.embedConfig.ServerUrl;
               this._appComponent.dashboardServerApiUrl = this.dashboardService.embedConfig.ServerUrl + "/api";
           }})
         }
       }

In the getDashboard, the dashboard list is obtained from the server and passed to the dashboardDetails() method to render a dashboard.

       this._app.GetDashboards(this._appComponent.apiHost + this._appComponent.getDashboardsUrl). subscribe(data => {
       this._appComponent.dashboards = <any>data;
       this.dashboardsList = this._appComponent.dashboards;
       this.renderDashboard(this.dashboardsList[0]);
   });

Once the server sends the response to the GetDashboards() of an angular application, this method returns the response to the ngOnInit() method to call the renderDashboard() method.

In the renderDashboard() method, an instance is created to render a dashboard using the loadDashboard() method as follows. Dashboard Rendering

     renderDashboard(dashboard: Item) {
       this.dashboard = BoldBI.create({
       serverUrl: this._appComponent.baseUrl,
       dashboardId: this.dashboardService.embedConfig.DashboardId,
       embedContainerId: "dashboard",
       embedType: this.dashboardService.embedConfig.EmbedType,
       environment: this.dashboardService.embedConfig.Environment,
       width: "100%",
       height: "100%",
       expirationTime: 100000,
       authorizationServer: {
          url: this._appComponent.apiHost + this._appComponent.authorizationUrl
       }
   });

   console.log(this.dashboard);
   this.dashboard.loadDashboard();
   }

Open the app.component.html file and replace the following code.

    <body>
      <main class="dashboard_container"><router-outlet></router-outlet></main>
    </body>

Open the app.module.ts file and replace the following code. The necessary modules and components are imported.


     import { BrowserModule } from '@angular/platform-browser';
     import { NgModule } from '@angular/core';
     import { FormsModule } from '@angular/forms';
     import { HttpClientModule } from '@angular/common/http';
     import { RouterModule } from '@angular/router';
     import { appService } from './app.service';
     import { AppComponent } from './app.component';
     import { NavMenuComponent } from './nav-menu/nav-menu.component';
     import { DashboardListing } from './dashboard-listing/dashboard-listing.component';
     import { CounterComponent } from './counter/counter.component';
     import { FetchDataComponent } from './fetch-data/fetch-data.component';

     @NgModule({
        imports: [
        BrowserModule,
            RouterModule.forRoot([
            { path: '', component: DashboardListing },
             ]
         ),
         HttpClientModule
         ],
            providers: [appService],
            declarations: [
            AppComponent,
            DashboardListing,
            NavMenuComponent,
            CounterComponent,
            FetchDataComponent
         ],

         bootstrap: [AppComponent]
         })
     export class AppModule { }

Open the folder ClientApp\src\app and create a new file called app.service.ts file, include the following code.

     import { Injectable } from '@angular/core';
     import { HttpClient, HttpParams, HttpHeaders } from '@angular/common/http';
     import { HashLocationStrategy } from '@angular/common';

     @Injectable()
     export class appService {
     private authUrl!: string;
     private getDashboardsUrl!: string;
     private header!: HttpHeaders;
     constructor(private http: HttpClient) {
     }
     public GetDashboards(getDashboardsUrl: string) {
     this.header = new HttpHeaders();
     this.header = this.header.append('Access-Control-Allow-Origin', '*');
     this.header = this.header.append('Authorization', 'bearer ' + "token");

     return this.http.get(getDashboardsUrl, {
     headers: this.header
     }).pipe(res => {
     return <any>res;
     });
     }

     public GetEmbedConfig(getDashboardsUrl: string) {
     return this.http.get(getDashboardsUrl, {
     }).pipe(res => {
     return <any>res;
     }); }
 }

Open the folder ClientApp\src\app and create a new file called app.ts and include the following code.

      export class Item {
      Name!: string;
      Description!: string;
      Id!: string;
      Version!: string;
      IsPublic!: boolean;
      ItemLocation!: string;
      CategoryName!: string;
      }

Open the folder ClientApp\src\app and create a new file called dashboard.service.ts and including the following code. These properties are used to get and set the value of this property.

   import { Injectable } from '@angular/core';
   @Injectable({
       providedIn: 'root'
   })
   export class DashboardService {
   public embedConfig: any;
   getEmbedConfig(): any {
   return this.embedConfig;
   }
   setEmbedConfig(embedConfig: any): void {
   this.embedConfig = embedConfig; }
   }

Open the assets folder and create a subfolder named css. Within the css folder, create a new file called site.css and place the provided code inside it

       body html { width: 100%; height: 100%; }
       html, body,app-root { width: 100%; height: 100%; margin: 0; font-family: Roboto; font-size: 13px;}
       ul { list-style-type: none; padding-left: 0; }
       .tab { padding-top: 2px; padding-bottom: 18px; cursor: pointer }
       .active { background-color: burlywood; }

       .e-dbrd-blueWaitingIndcator {
        -webkit-animation: rotate 2s linear infinite; animation: rotate 2s linear infinite; height: 54px; width: 54px; top: 50%; left: 50%; position: relative; }

       .e-waiting { position: fixed; display: block; margin: 0px auto; width: 54px; height: 54px; zoom: 0.5; margin-left: 55px;}

       #container { width: 13%; float: left; height: 100%; float: left; background: #f4f4f4; height: 100%; box-shadow: 2px 0 4px 0 rgba(0, 0, 0, .12); overflow: auto; overflow-x: hidden; }

       #grid-title { font-size: 17px; border-bottom: 1px solid #333; padding: 15px;}
       #panel { width: 100%; float: left; background: #f4f4f4; overflow: auto;}
       #dashboard { width: 100%; float: left; height: 100%; display: block; }
       .dashboard-item { padding: 10px; border-bottom: 1px solid #ccc; cursor: pointer; }
       #viewer-section { width: 100%; height: 100%; float: left; }
       #viewer-header { padding: 10px; display: block; float: left; width: 100%; }
       #create-dashboard { float: right; margin-right: 20px; background: #0565ff; border: 0; border-radius: 4px; color: #fff;cursor: pointer; display: inline-block;font-size: 12px; font-weight: 600;height: 28px;line-height: 28px; min-width: 90px; outline: none; text-align: center;border: 1px solid #0450cc; }

       #edit-dashboard {
       float: right; background: #fff; margin-right: 20px; border: 0; border-radius: 4px; color: #333; cursor: pointer; display: inline-block; font-size: 12px; font-weight: 600; height: 28px; line-height: 28px; min-width: 90px; outline: none; text-align: center; border: 1px solid #b3b3b3; }
       #dashboardDesigner{ height: 900px; border: 2px solid #333; }
       .dashboard_container { height: 775px !important; width: 1685px !important; margin-left: 0px !important; margin-right: 0px !important; margin-top: 0px !important; margin-bottom: 0px !important;}
       .e-waitpopup-pane { display: none; }

To install all dependent packages, use the following command npm install.
Run the ASP.NET core and angular applications using the dotnet run command.
